CNC Milling Tooling and Cutter Types: Your Complete Guide

Have you ever wondered why some parts come out perfect while others don’t? It often boils down to the right CNC milling tooling. In this guide, you’ll learn about different cutter types and how they work.

You’ll see why choosing the correct tool matters for your CNC milling service. We’ll cover types, materials, and tips to help you succeed. By the end, you’ll know how to pick tools that save time and money in your CNC milling service projects.

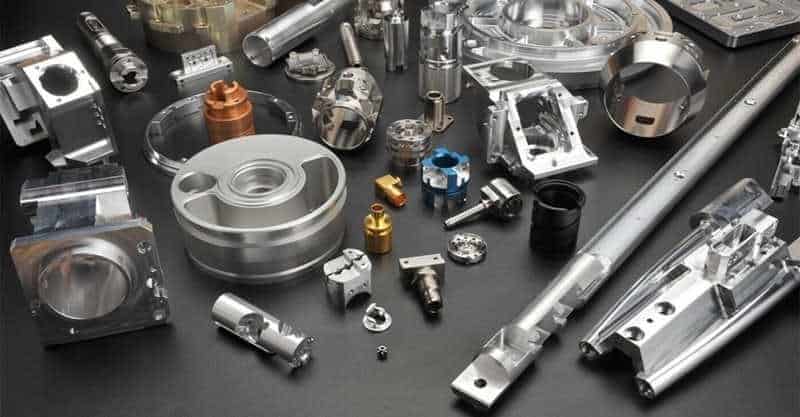

CNC milling shapes metal and other materials with spinning cutters. It’s key in making precise parts. The global CNC machine tools market is set to grow by USD 21.9 billion from 2024 to 2029 at a CAGR of 5.4%. This growth shows how important good tooling is today.

Whether you’re new or experienced, this post helps you understand cutters better. Let’s dive in and make your milling easier.

What Is CNC Milling Tooling?

CNC milling tooling refers to the specialized tools used in CNC milling machines to remove material from workpieces. These tools are designed to cut, shape, and finish parts with high precision. In a CNC milling machine, these tools are attached to the spindle and rotate at high speeds, allowing them to remove material in precise amounts and create complex geometries.

Proper tooling is essential in CNC milling because it directly influences the quality of the finished part, the speed of the operation, and the overall efficiency of the machining process. Good tooling minimizes tool wear, reduces the risk of breakage, and ensures a smoother finish with minimal material waste. The right tooling not only extends the life of the tool itself but also reduces the likelihood of errors, improving the accuracy and repeatability of each job.

Basic Parts of a Milling Cutter

A milling cutter is a cutting tool used in CNC milling that consists of several parts, each of which serves an important function in the cutting process:

1. Flutes:

   • Function: These are the spiral or straight grooves on the cutting tool. The flutes serve to carry chips away from the cutting area during the machining process. More flutes generally mean smoother cuts, but they also leave less space for chips to escape, which can lead to heat buildup and tool wear.

2. Shank:

   • Function: The shank is the part of the cutter that is held in place by the machine’s spindle. It ensures the cutter is firmly positioned for accurate cutting. The size and shape of the shank determine which machines the cutter can be used with.

3. Teeth:

   • Function: The teeth are the cutting edges of the tool that remove material from the workpiece. They are sharp and designed to shear or grind away at the material, creating the desired shape. The number, size, and design of the teeth can affect the finish and cutting efficiency of the tool.

4. Number of Flutes:

   • More flutes generally result in smoother cuts but less space for chips. Fewer flutes create more room for chip evacuation but can result in rougher cuts. The choice depends on the material being cut and the type of operation.

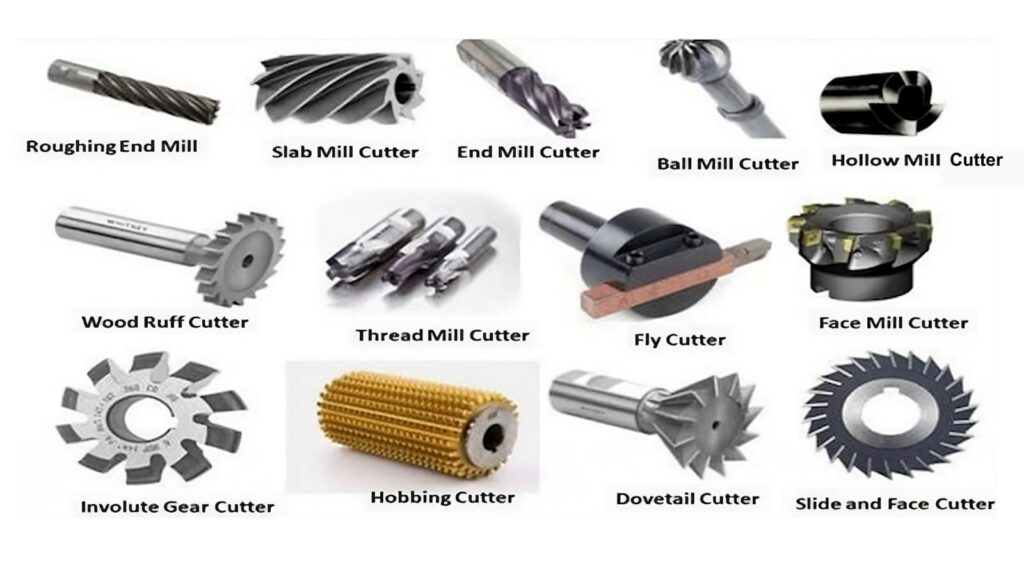

Common Types of End Mills

End mills are a category of CNC milling cutters used in various applications, particularly for creating slots, pockets, and contours. They can cut along the sides as well as the end of the tool, making them versatile in multi-axis machining. Here are the most common types:

1. Flat End Mills:

   • Shape: These mills have a square end and are primarily used for cutting flat surfaces or roughing.

   • Advantages: Ideal for creating sharp corners or flat areas in parts.

   • Materials: These mills are highly effective when cutting materials like steel and aluminum.

   • Applications: Used extensively for roughing, finishing flat surfaces, and creating sharp contours.

2. Ball Nose End Mills:

   • Shape: These tools have a rounded tip, making them perfect for smooth curves.

   • Advantages: Excellent for creating complex 3D shapes, such as those used in molds or curved features.

   • Pro Tip: Ball nose end mills are ideal for finishing operations as they help avoid marks and tool lines on curved surfaces.

3. Roughing End Mills:

   • Shape: Roughing cutters typically have wavy teeth that remove large amounts of material quickly.

   • Advantages: Used primarily for bulk material removal. The roughing operation is followed by a finishing operation to achieve the desired dimensions.

   • Applications: Primarily used in the initial stages of a milling operation, where speed and material removal rate are the main priorities.

4. Face Mills and Shell Mills:

   • Face Mills: Cut on the face of the tool rather than the sides. Face mills are used for wide flat surfaces, giving a smooth finish to large areas.

   • Shell Mills: Similar to face mills but are typically larger in size and can use replaceable inserts for cutting.

   • Applications: Ideal for preparing parts before more detailed operations. Shell mills are particularly effective for heavy cutting in tough materials.

5. Pro Tip: Regularly rotate the inserts in shell mills to extend tool life and reduce wear.


Specialty Milling Cutters

Certain milling cutters are designed for specialized tasks, improving both efficiency and accuracy for specific operations:

1. Slot Drills and T-Slot Cutters:

   • Slot Drills: These cutters are designed to plunge directly into the material to create slots.

   • T-Slot Cutters: Used to create T-shaped grooves to accommodate bolts or other fasteners.

   • Applications: Slot drills are used for cutting slots, while T-slot cutters are critical for machining T-shaped grooves for bolted assemblies.

2. Dovetail and Chamfer Mills:

   • Dovetail Cutters: Used to create angled slots that are typically required in joins or assembly parts.

   • Chamfer Mills: Used to create beveled edges on parts for both safety and aesthetic purposes.

   • Applications: Dovetail cutters are used in creating dovetail joints, while chamfer mills are used for creating safety edges or preparing parts for assembly.

3. Thread Mills:

   • Thread Milling: This cutter is used to create threads inside a hole, typically more efficient than traditional tapping in hard materials.

   • Advantages: Thread mills are highly effective for creating precise threads in materials that are difficult to tap. They allow for greater flexibility in thread geometry and depth.


Materials for CNC Milling Cutters

CNC milling cutters are made from various materials, each designed to handle specific types of jobs and materials. Choosing the right material for a cutter can impact its durability, performance, and cost-effectiveness. Here’s an overview of some of the most common materials used for CNC milling cutters:

1. High-Speed Steel (HSS)

Properties:

• Tough and cost-effective.

• Can withstand high temperatures and moderate shock loads.

• Resistant to wear at moderate cutting speeds.


Best Use:

• Soft materials (e.g., aluminum, brass, soft steel).

• Low-volume machining or prototype work where cost is a major factor.


Advantages:

• Affordable compared to other materials.

• Good versatility for a wide range of materials.

• Can handle intermittent cutting with moderate speeds.


Disadvantages:

• Not suitable for high-speed operations or harder materials like titanium.

• Limited heat resistance compared to carbide, leading to quicker wear at high speeds.


2. Carbide

Properties:

• Extremely hard and wear-resistant.

• Handles high cutting speeds and temperatures well.

• Brittle, making it less suitable for applications with high shock or impact.


Best Use:

• High-speed machining for materials like steel, stainless steel, and titanium.

• High-volume operations that require precision and long tool life.


Advantages:

• Longer tool life due to high wear resistance.

• Excellent performance at high speeds and temperatures.

• Maintains sharp edges for longer periods.


Disadvantages:

• Brittleness means it can fracture under heavy shock or vibration.

• Expensive compared to HSS.


3. Cobalt (Coated or Uncoated)

Properties:

• Harder and more wear-resistant than HSS.

• Improved heat resistance, making it suitable for high-speed machining.

• Tougher than carbide, though not as wear-resistant at extreme speeds.


Best Use:

• Harder materials (e.g., stainless steel, high-temperature alloys).

• Medium to high-speed operations.


Advantages:

• More toughness than carbide, making it better for tough cuts.

• Higher resistance to heat than HSS.


Disadvantages:

• Not as wear-resistant as carbide in high-speed applications.

• More expensive than HSS.


4. Ceramic

Properties:

• Extremely hard and heat-resistant.

• Suitable for high-speed cutting of very hard materials.

• Brittle, like carbide, so it’s more prone to cracking under shock or impact.


Best Use:

• Hard materials (e.g., cast iron, hardened steel, high-temperature alloys) at high speeds.


Advantages:

• Outstanding heat resistance, ideal for high-speed machining.

• Longer tool life in high-temperature operations.


Disadvantages:

• Brittle nature makes it unsuitable for applications with vibrations or shock loads.

• Costly compared to other materials.


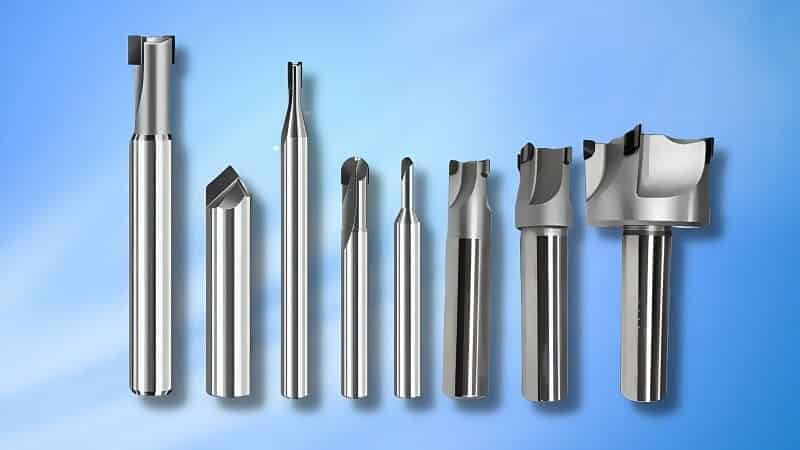

5. Polycrystalline Diamond (PCD)

Properties:

• Extremely wear-resistant and hard.

• Excellent for non-ferrous materials like aluminum, brass, copper, and composites.

• Very costly due to its diamond-like properties.


Best Use:

• Non-ferrous materials, particularly aluminum, brass, and composite materials.

• High-precision applications requiring excellent surface finishes and wear resistance.


Advantages:

• Incredibly long tool life in non-ferrous machining.

• Can handle high-speed cutting without wear.


Disadvantages:

• Extremely expensive, limiting its use to specialized applications.

• Brittle and susceptible to damage from hard materials or impacts.


6. High-Performance Alloys

Properties:

• Mixture of tungsten, cobalt, and other hard materials designed for specific tasks.

• Designed for tough cutting conditions and hard materials.


Best Use:

• Tough materials like titanium and high-alloy steels.

• High-performance, high-precision machining environments.


Advantages:

• Optimized for specific tough applications.

• High performance and precision.


Disadvantages:

• Expensive compared to HSS.

• May not be as versatile as carbide in terms of material compatibility.

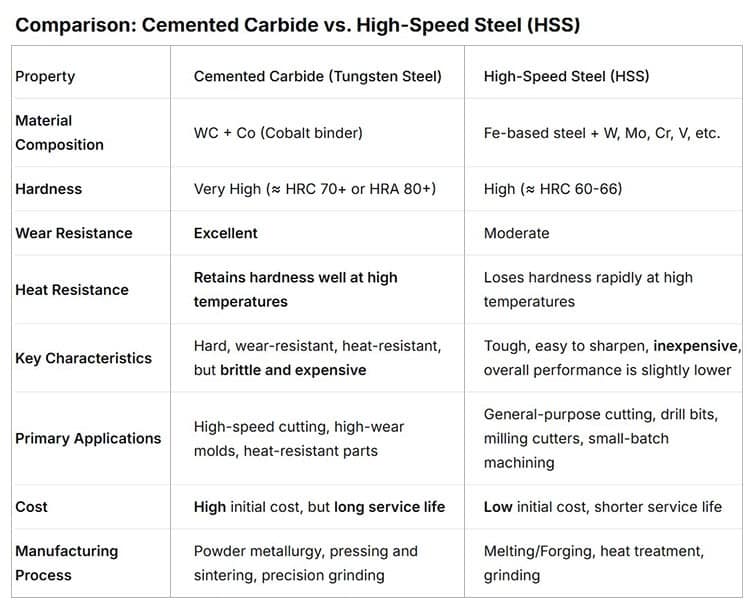

Carbide Cutters

Carbide is hard and lasts longer. It cuts faster than HSS. Studies show carbide boosts productivity by up to 40% in CNC operations.

Other Materials Like Ceramics

Ceramics cut at high speeds on hard metals. They resist heat but can crack easily.

Coatings for Enhanced Performance

Coatings protect cutters and improve cuts.

Titanium Nitride (TiN)

TiN reduces friction. It helps tools last longer in aluminum.

Other Common Coatings

TiAlN works for high-heat jobs. Diamond coatings excel on non-metals like graphite.

Pro Tip: Match coating to your material for best results.

How to Choose the Right Milling Cutter

Choosing the right milling cutter is crucial to save time and money, and to ensure a high-quality finish on your workpiece. Below is a guide on how to select the best milling cutter for your project.

Factors to Consider:

1. Material Type: The material you’re working with plays a critical role in cutter selection. Harder materials like steel require carbide tools, while softer materials like aluminum may be fine with high-speed steel.

2. Machine Power: Ensure that your machine has enough power to handle the cutter you select. Larger cutters may require more power to operate effectively.

3. Desired Finish: If you’re aiming for a smooth finish, you’ll want to consider a cutter designed for finishing operations, with more flutes for better surface quality.


Step-by-Step Selection Guide:

1. Identify Your Material:

   • Determine whether you’re working with steel, aluminum, titanium, or another material. This will help you choose the right material for the cutter itself (e.g., carbide, HSS, coated).

2. Decide on the Operation Type:

   • Are you performing roughing or finishing? Roughing cutters remove large amounts of material quickly, while finishing cutters provide a smoother surface.

3. Choose the Flute Count Based on Chip Removal:

   • Roughing typically uses cutters with fewer flutes for better chip removal, while finishing uses cutters with more flutes for smoother cuts.

4. Pick Coating If Needed:

   • A coating like TiN (Titanium Nitride) can enhance cutter life and reduce friction, especially for hard-to-machine materials.

5. Check Tool Diameter for Stability:

   • Larger diameter cutters provide more stability but require more power, while smaller diameter cutters are used for intricate or detailed cuts.


Quick Reference Checklist:

• Material Hardness: What material are you cutting? Carbide for harder materials, HSS for softer ones.

• Required Precision: Is it a rough cut or a fine finish? Choose accordingly.

• Batch Size: Large batches may require more durable, efficient cutters.

• Machine RPM Limit: Ensure the cutter is suitable for your machine’s speed capabilities.

• Budget: Higher-end cutters (like carbide) tend to be pricier, but offer better performance and longer lifespan.


By considering these factors, you can make an informed decision that aligns with your machining needs.

Common Mistakes to Avoid in CNC Milling

Don’t let simple errors ruin your work.

• Using wrong speed: Too fast breaks tools.
• Ignoring chip load: Causes poor finishes.
• Skipping coolant: Overheats cutters.
• Poor tool holding: Leads to vibration.
• Not inspecting tools: Worn cutters make bad parts.

Expert Advice: Always measure tool wear before long runs.

Applications in Key Industries

CNC milling serves many fields.

Aerospace Industry

In aerospace, precision is key. Ball nose mills shape turbine blades. Companies like Boeing use CNC for lightweight parts.

Automotive Sector

Automotive needs strong parts fast. Face mills flatten engine blocks. Ford relies on carbide tools for efficiency.

Medical and Electronics

Medical uses small end mills for implants. Electronics need precise slots for circuits.

Maintenance Tips for Longevity

Keep tools sharp for best results.

Cleaning and Storage

Clean cutters after use. Store in dry places to avoid rust.

When to Replace Cutters

Replace when you see chipping or poor finishes. Regular checks prevent downtime.

Cost Breakdown of Milling Tools

Costs vary by type and material.

Initial vs. Long-Term Costs

HSS costs less upfront but wears faster. Carbide costs more but lasts longer, saving money over time.

Pro Tip: Calculate total cost per part for better decisions.

Key Takeaways

• End mills are versatile for many cuts.
• Face mills excel at flattening large areas.
• Carbide offers speed; HSS provides toughness.
• Match tools to materials for best results.
• Avoid common mistakes like wrong speeds.
• Industries like aerospace demand precision tools.
• Proper maintenance extends tool life.




Conclusion

You’ve now got the basics on CNC milling tooling and cutter types. Use this knowledge to pick better tools for your projects. Remember, the right cutter makes all the difference in quality and speed.

Think about your needs and test options. With practice, you’ll master milling.

Ready to upgrade your CNC milling service? Contact us for expert advice on tools that fit your work. Let’s make your next project a success.
