CNC Milling Materials and Their Machinability

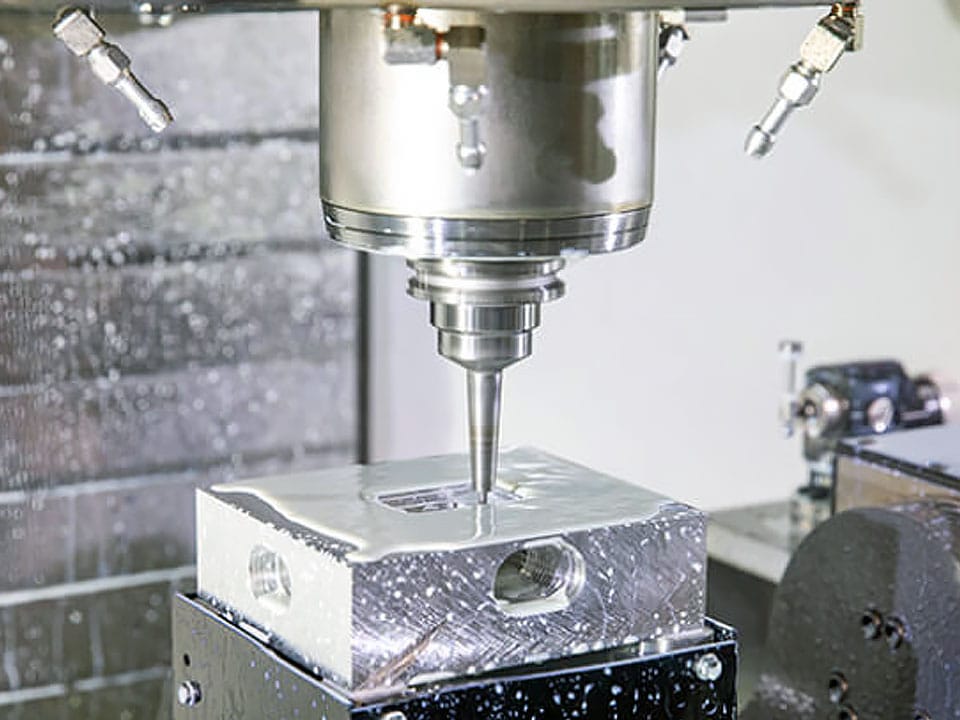

Introduction: Understanding CNC Milling Materials and Their Impact on Manufacturing

In the world of precision machining, CNC milling stands as one of the most versatile and widely-used methods. Whether you’re manufacturing complex aerospace components, medical implants, or automotive parts, choosing the right material is critical for ensuring both performance and cost-efficiency. The machinability of these materials—how easily they can be cut, shaped, and finished—directly influences tool life, cycle time, part quality, and ultimately, the profitability of the operation.

For engineers, OEM buyers, and procurement managers, selecting the appropriate material for CNC milling is not just a matter of cost or availability. The material’s machinability, hardness, thermal properties, and overall compatibility with the chosen CNC machine must also be taken into account. In this article, we will explore various materials used in CNC milling, discuss their machinability, and provide practical insights into how to make informed decisions in real-world manufacturing scenarios. Whether you are machining metals, plastics, or composites, understanding the nuances of CNC milling materials is critical for success.

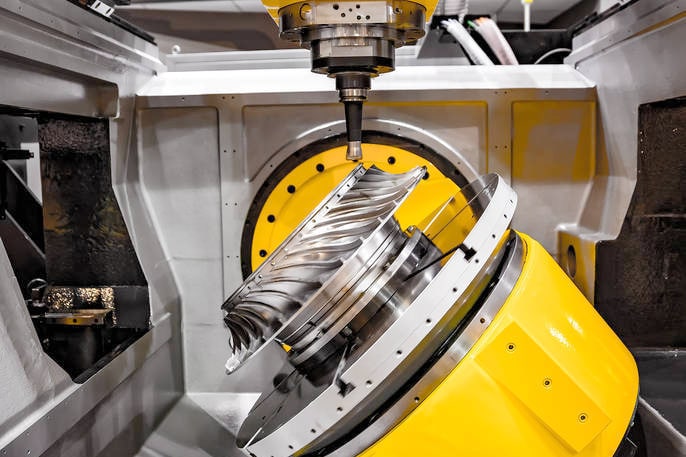

What is Machinability in CNC Milling?

Defining Machinability

Machinability refers to how easily a material can be cut using a CNC milling process. It depends on a variety of factors, including the material’s hardness, strength, ductility, thermal properties, and chip formation characteristics. Materials that are easier to machine will generate less heat, cause less tool wear, and allow for faster cutting speeds, leading to lower production costs.

However, machinability isn’t solely about ease of cutting—it also encompasses factors such as:

• Surface finish quality: How well the material holds up during the milling process in terms of producing smooth surfaces.
• Tool wear: Materials that cause excessive tool wear can increase the cost of operation and reduce tool life.
• Chip formation: The ability of the material to form chips that are easily removed from the cutting area.
• Heat generation: How much heat is generated during machining, which can affect both the material and the cutting tool.

Factors That Affect Machinability

Machinability refers to how easily a material can be shaped, cut, or machined using various processes like milling, turning, drilling, or grinding. Several factors influence machinability, which determines the efficiency, cost, and precision of machining operations. Let’s dive into each factor in detail:

1. Hardness:

Hardness is a key factor affecting machinability. It refers to a material’s resistance to indentation, scratching, and wear. Harder materials, such as tool steels and certain alloys, are generally more challenging to machine. The reason is that harder materials cause rapid wear on cutting tools. This results in the need for more frequent tool changes and additional time spent on maintenance. Also, harder materials require more energy to cut, leading to higher machining costs and longer production times. For example, materials like titanium alloys and hardened steels require specialized cutting tools made from harder materials (like carbide or diamond) to handle the wear.

2. Strength:

Strength, specifically tensile strength (resistance to pulling or stretching) and yield strength (resistance to deformation), plays a significant role in machinability. Materials with high strength, like high-carbon steels and certain superalloys, resist deformation during machining. As a result, the cutting forces needed to shape the material are higher, and more rigid machine setups and tool configurations are required to prevent tool deflection or vibrations. Stronger materials can also increase the possibility of heat generation during cutting, which further complicates the machining process.

High-strength materials may also cause issues with chip removal, leading to the formation of smaller, harder chips that can accumulate and interfere with machining operations, affecting surface finish and tool life.

3. Ductility:

Ductility refers to a material’s ability to deform without breaking, typically by stretching or bending. Ductile materials, like aluminum and copper alloys, tend to deform plastically during machining rather than fracturing into small pieces. While ductility may seem beneficial, it often results in the formation of long, stringy chips. These long chips can cause issues such as tool clogging, poor surface finish, and difficulties in chip removal, all of which can make machining more challenging.

Furthermore, ductile materials tend to work-harden during machining, meaning they get harder as they are deformed, which increases the cutting forces needed as the process continues. This phenomenon requires careful control of cutting parameters to avoid excessive tool wear or tool failure.

4. Thermal Properties:

The thermal properties of a material are critical in determining how heat is generated and dissipated during machining. Materials with high thermal conductivity, like aluminum, quickly transfer heat away from the cutting zone, which helps cool the tool and reduce thermal damage. Conversely, materials with low thermal conductivity, such as stainless steels and titanium, trap heat near the cutting edge, leading to rapid tool wear and potential thermal expansion or distortion of the material.

Materials with high heat resistance, such as certain high-temperature alloys, are designed to perform at elevated temperatures. However, they can become more challenging to machine as they maintain their strength even when exposed to high cutting temperatures. This increases the likelihood of tool wear and may require more advanced cooling techniques, like coolant systems or even cryogenic cooling, to manage heat build-up during the machining process.

5. Grain Structure:

The grain structure of a material—whether it is fine, coarse, or irregular—affects its machinability. A material’s internal crystalline structure can influence how evenly it cuts and whether it will produce a smooth surface finish. Materials with irregular or coarse grain structures tend to be more challenging to machine because the cutting tool may encounter variations in hardness and resistance as it moves through different parts of the material.

CNC Milling Materials and Their Machinability

Metals: The Core of CNC Milling

Metals are the most commonly used materials in CNC milling, particularly in industries like aerospace, automotive, and medical manufacturing. The machinability of metals varies significantly depending on their composition and properties.

Steel

Steel is one of the most versatile and commonly machined materials. It comes in many varieties, including carbon steel, alloy steel, and stainless steel. The machinability of steel is influenced by its hardness and alloy content.

• Carbon Steel: Generally easier to machine than alloy or stainless steel, though high-carbon steels can be difficult due to their hardness. Carbon steel is often used for general machining applications, including tool and die making.
• Alloy Steel: Contains additional elements such as chromium, nickel, or molybdenum, which improve properties like strength, toughness, and corrosion resistance. However, they can be more challenging to machine due to their hardness and strength.
• Stainless Steel: Stainless steels are known for their corrosion resistance but are harder to machine compared to carbon steel. They generate a lot of heat during machining, which can lead to tool wear. Solutions for machining stainless steel include slower cutting speeds, carbide tooling, and the use of coolant.

Aluminum

Aluminum is one of the easiest metals to machine due to its softness, low density, and good thermal conductivity. It is commonly used in aerospace, automotive, and electronics manufacturing. Aluminum has several machinability advantages:

• Low Cutting Forces: Aluminum’s low hardness means it requires less force to cut, reducing tool wear.
• Good Chip Formation: Aluminum forms short chips that are easy to remove from the cutting area, preventing clogging and improving cutting efficiency.
• Heat Dissipation: The material’s good thermal conductivity helps prevent overheating, which extends tool life.

However, high-strength aluminum alloys, such as 7075-T6, can be harder to machine and require specialized tooling and slower cutting speeds.

Titanium

Titanium alloys, known for their high strength-to-weight ratio and excellent corrosion resistance, are widely used in aerospace, military, and medical industries. While titanium offers excellent properties, it also presents significant challenges in CNC milling:

• Low Thermal Conductivity: Titanium generates significant heat during machining, which can lead to tool wear and thermal distortion. Cooling strategies and carbide tooling are often necessary.
• High Cutting Forces: Titanium is tough and resists deformation, making it more difficult to cut. This requires higher cutting forces and slower cutting speeds.
• Tool Wear: Due to titanium’s hardness and strength, it causes rapid tool wear. Engineers often use ceramic or carbide tools, which are designed to withstand the high temperatures and cutting forces encountered when machining titanium.

Cast Iron

Cast iron is commonly used in the production of engine blocks, machinery, and other heavy-duty parts. It comes in various grades, such as gray cast iron and ductile cast iron, each with different machinability characteristics:

• Gray Cast Iron: Easier to machine compared to ductile cast iron due to its lower hardness and more brittle structure. It produces fine chips, which reduces wear on tools.
• Ductile Cast Iron: More difficult to machine because of its higher strength and toughness. It can create tough, stringy chips that may increase tool wear.

Non-Metallic Materials in CNC Milling

Beyond metals, several non-metallic materials are also commonly milled using CNC machines, including plastics and composites. These materials typically offer better machinability than metals but come with their own set of challenges.

Plastics

Plastics such as Acrylic, Polycarbonate, Nylon, and Delrin are widely used in CNC milling due to their excellent machinability:

• Low Hardness: Plastics are generally easier to machine, with lower cutting forces required.
• Smooth Surface Finish: Plastics often achieve a smooth surface finish during milling, which is important in consumer goods and medical devices.
• Chip Control: Plastics can form long, stringy chips, which can lead to clogging in the cutting area. Careful chip management and tool choice are necessary.

However, plastics can also generate heat quickly, which may lead to issues like material melting or deformation. Using proper cooling and cutting speeds is essential to avoid these issues.

Composites

Composites, like carbon fiber or fiberglass, are increasingly used in aerospace, automotive, and medical industries due to their high strength and lightweight properties. However, machining composites is more challenging:

• Abrasion: Carbon fiber composites are highly abrasive, requiring harder tooling to prevent premature tool wear.
• Chip Removal: The long fibers in composites can interfere with chip removal, which can result in poor surface finish or even damage to the part.
• Delamination: When machining composite materials, there’s a risk of delamination, where the layers of the composite material separate. This requires careful tool control, feed rates, and cooling.

Real-World Manufacturing Scenarios: Choosing the Right Material for CNC Milling

1: Aerospace Component Manufacturing

In the aerospace industry, materials like titanium and high-strength aluminum alloys are commonly used due to their excellent strength-to-weight ratios and corrosion resistance. When milling titanium, engineers often use high-speed steel (HSS) or carbide tooling and adjust cutting speeds to reduce heat buildup and extend tool life.

Machinists will often face the challenge of tool wear and heat generation, so coolant systems or air-cooling solutions are employed to mitigate these issues. In contrast, aluminum alloys in the aerospace industry can be milled with higher cutting speeds and less tooling wear, making them more cost-effective for specific applications.

2: Automotive Part Manufacturing

In automotive manufacturing, cast iron and aluminum are frequently machined. Cast iron, with its wear-resistant properties, is often used for engine blocks, while aluminum is used for lightweight parts like wheels and body panels.

For cast iron, cutting tool choice becomes crucial to prevent excessive wear. In comparison, aluminum’s low cutting forces make it easier to machine, but high-speed cutting can lead to chip build-up, which can result in poor surface finish.

3: Medical Device Prototyping

When creating medical devices such as implants or surgical tools, stainless steel and titanium are often chosen due to their corrosion resistance and biocompatibility. However, these materials can be challenging to machine, and special care must be taken to ensure tight tolerances and smooth surface finishes.

Machinists may need to use multi-pass operations to reduce heat and avoid tool damage. Furthermore, tools like diamond-coated carbide or ceramic inserts are often used for enhanced performance when cutting these difficult materials.

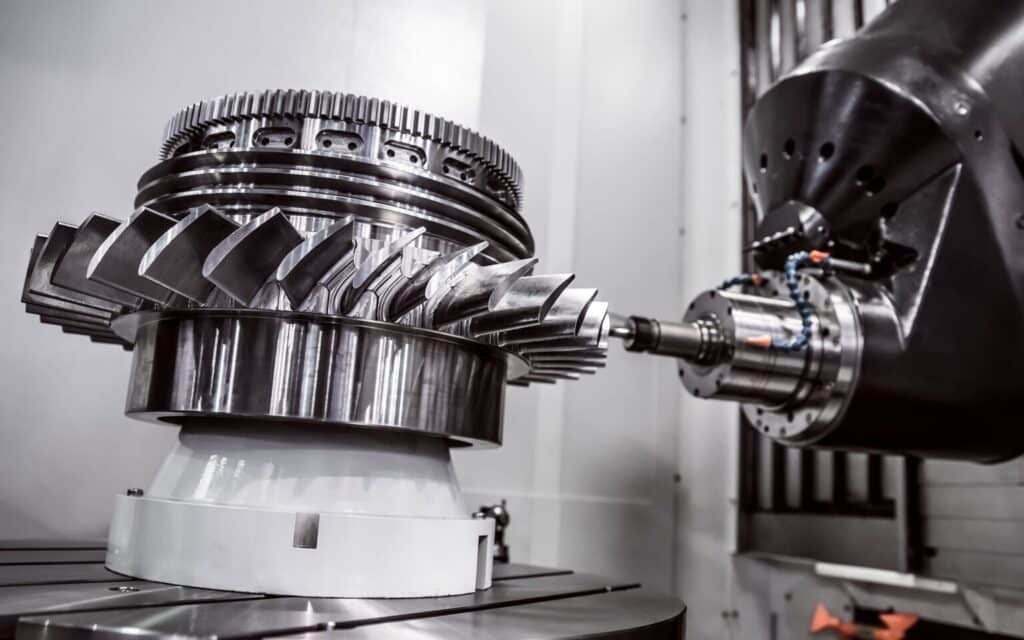

Trade-Offs and Decision Logic in Material Selection

• 1. Material Hardness vs. Tool Wear:
• The hardness of a material plays a critical role in determining the power required for machining and the wear on cutting tools. Harder materials, such as tool steels, ceramics, and hardened alloys, possess greater resistance to indentation, which makes them more difficult to cut or shape. As a result, harder materials require more cutting force and power to machine, leading to increased tool wear over time. The cutting edges of tools made from standard materials such as high-speed steel (HSS) or carbide may wear down quickly when machining harder materials, requiring more frequent tool changes and maintenance.

• In the case of highly abrasive materials like carbon fiber composites or certain ceramic materials, the challenge becomes even more pronounced. These materials tend to be highly abrasive, meaning they will rapidly degrade standard cutting tools. To overcome this, specialized tooling made from materials such as polycrystalline diamond (PCD) or cubic boron nitride (CBN) is often used. Additionally, slower feeds and cutting speeds are employed to reduce the thermal effects that accelerate tool wear and to give the cutting tool time to remove the material without overheating. This adjustment, however, can lead to longer cycle times, increased tooling costs, and higher operational expenses. Consequently, the trade-off between selecting harder materials for their desired properties and the associated tool wear and power requirements must be carefully evaluated in terms of production costs and efficiency.

• 2. Strength vs. Machining Speed:

• High-strength materials, such as titanium alloys, high-strength steels, and superalloys, present another set of challenges for machining. These materials exhibit a high resistance to deformation, which makes them ideal for demanding applications in industries such as aerospace, medical devices, and automotive. However, this strength also means that they are more difficult to machine, requiring greater cutting forces.

• The key issue here is the heat generated during machining. As high-strength materials resist deformation, the cutting process generates substantial frictional heat. This heat must be carefully managed to prevent it from affecting the material’s integrity or damaging the cutting tool. Slower cutting speeds are typically employed to avoid excessive heat buildup. However, slower cutting speeds lead to longer cycle times, which negatively impacts production efficiency. The result is a trade-off between the material’s inherent strength and the time required to machine it, making it necessary to balance machining speed with the desired end product quality.
• Additionally, the slower cutting speeds may demand specialized cutting fluids, cooling systems, or even cryogenic cooling to effectively manage heat. This increases complexity and cost in terms of both equipment and operational overhead. The trade-off between machining speed and strength becomes crucial in high-performance applications, where the benefits of material strength must be weighed against the impact on throughput and manufacturing costs.

• 3. Cost vs. Durability:

• The balance between material cost and durability is a significant consideration in material selection. Softer materials, such as aluminum and plastics, are easier to machine and relatively inexpensive. They require less power to cut, resulting in lower tooling costs and faster cycle times. These characteristics make softer materials attractive for applications where cost is a primary concern and the requirements for strength and durability are not as stringent.

• However, softer materials like aluminum may not provide the same level of performance under demanding conditions. They can be less durable than harder, more corrosion-resistant materials, and may not withstand extreme temperatures, heavy loads, or harsh environments. For applications that require superior strength, corrosion resistance, or long-term durability, materials like stainless steel, titanium, or superalloys are preferred. These materials, however, come at a higher initial cost and present significant machining challenges due to their hardness and strength.

• Choosing between cost and durability is often a trade-off. For example, in industries like aerospace, titanium is selected for its exceptional strength-to-weight ratio and corrosion resistance, despite its high machining difficulty and expensive tooling costs. For non-critical applications, softer materials like aluminum may be used to balance cost-effectiveness with performance, as they are easier to machine and have lower material costs. Therefore, material choice is driven by the specific requirements of the application, considering both functional durability and overall cost.

• 4. Material Properties vs. Application:

• The selection of materials for a given application must take into account their material properties and how they match the specific requirements of the application. For instance, corrosion resistance, strength, and heat resistance are critical properties for materials used in harsh environments like marine, aerospace, and chemical processing industries.

• Materials like stainless steel and titanium are preferred in applications requiring excellent corrosion resistance, as they perform well in environments that are chemically aggressive or subject to high humidity, seawater, or extreme temperatures. However, these materials come with the downside of being more difficult and expensive to machine compared to softer, more common materials.

• On the other hand, materials such as plastics and aluminum may be used in low-cost, non-critical parts or for applications where weight reduction is a key factor. Plastics are easy to machine, lightweight, and can be produced at a lower cost, making them ideal for products such as consumer goods or low-stress components. However, they do not offer the same strength or durability as metals like steel or titanium.

• Thus, when selecting a material for a given application, engineers must carefully assess the material’s properties in relation to the application’s needs. This includes considering factors such as corrosion resistance, strength, thermal stability, cost, and machining feasibility to ensure the material provides the best balance of performance, cost, and manufacturability. The application’s operational environment, required lifespan, and performance criteria will ultimately determine which material is most appropriate, even if it comes with higher machining costs or longer cycle times.

Conclusion: Optimizing Material Selection for CNC Milling

Choosing the right material for CNC milling is a critical decision that directly impacts the efficiency, cost, and quality of the manufacturing process. Understanding the machinability of different materials, their strengths and weaknesses, and how they interact with tooling and machining parameters is key to making informed decisions. By weighing factors like material hardness, strength, and thermal properties, engineers and procurement managers can optimize their CNC milling strategies to achieve the best results for each specific application.

Whether you’re machining metals, plastics, or composites, understanding the nuances of CNC milling materials and their machinability will enable you to tackle even the most challenging manufacturing problems with confidence.

FAQs on CNC Milling Materials and Their Machinability

1. What is the easiest material to machine for CNC milling?

Aluminum is one of the easiest materials to machine due to its low hardness, good chip formation, and thermal conductivity. It allows for higher cutting speeds and less tool wear, making it a popular choice for general-purpose machining.
