Introduction: Why CNC Machining Design Guidelines Matter

CNC machining is a cornerstone of modern manufacturing. Whether you’re designing a prototype or mass-producing precision components, understanding CNC machining design guidelines is crucial. As engineers, OEM buyers, and procurement managers, you may already be aware that the performance of your machined parts depends not only on the machine itself but on the design choices made early in the process. A deep understanding of these guidelines ensures that parts meet tolerances, are manufacturable within the constraints of available technology, and avoid costly production delays.

This article aims to give you the foundational knowledge and real-world insights into designing for CNC machining, while also helping you navigate the complexities of the decision-making process. We’ll go beyond the theoretical aspects and dive into the practical, hands-on experience that will empower you to create parts that are not just theoretical “designs,” but manufacturable realities.

The Fundamentals of CNC Machining: A Starting Point for Engineers

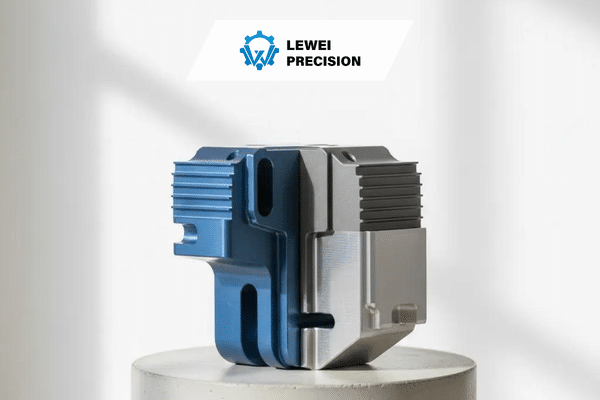

Fundamentals of CNC Machining

Before diving into design-specific guidelines, it is important to revisit the basic principles of CNC machining, as they directly influence design decisions.

What is CNC Machining?

CNC (Computer Numerical Control) machining is a manufacturing process in which pre-programmed computer software controls the movement of tools and machinery. This technology is used to cut, mill, drill, or shape raw materials into finished products. CNC machines can work with a wide variety of materials, including metals, plastics, wood, and composites.

CNC Machines at a Glance

CNC machines come in various configurations, including:

  • CNC mills
  • CNC lathes
  • CNC routers
  • CNC EDM (Electrical Discharge Machining)

These machines are designed to precisely follow tool paths that are programmed in CAM (Computer-Aided Manufacturing) software. The exact path, speed, depth of cut, and other parameters are calculated based on the design specifications of the part.

CNC Machining Capabilities

CNC machining excels in the following areas:

  • Complex Geometries: 3D contours and multi-axis movements
  • Tolerances: Precise dimensional control down to microns
  • Repeatability: Repeating the same operation thousands of times with minimal deviation
  • Material Variety: Can be used with a wide range of materials, including tough alloys, composites, and plastics
  • Speed and Automation: Suitable for high-volume, consistent production runs

However, these capabilities come with limitations, especially related to tooling, fixturing, and material behavior, which must be accounted for during the design phase.

CNC Machining Design Guidelines for Engineers

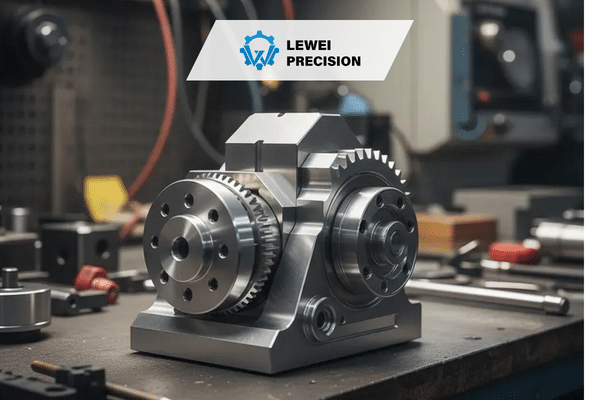

CNC Machining for Engineers

1. Understanding Material Constraints

Material selection is one of the most critical factors in CNC machining. Each material behaves differently under machining conditions. Whether you’re working with metals, plastics, or composites, understanding how materials respond to cutting tools and forces will impact the design.

Factors to Consider:

  • Hardness: Harder materials, such as stainless steel or titanium, require slower cutting speeds, tougher tools, and higher power machines.
  • Thermal Conductivity: Materials with low thermal conductivity, like plastics, can lead to excessive heat buildup, affecting both the workpiece and tool life.
  • Chip Formation: Materials that produce long, stringy chips (e.g., aluminum) may require specific chip-breaking techniques to avoid tool interference.
  • Work Hardening: Materials like titanium and certain stainless steels can harden as they are machined, increasing cutting forces and reducing tool life.

Designers should consult with machinists to understand the behavior of the selected material and how it can affect tooling, cycle times, and overall part geometry.

2. Tolerances and Features: Balancing Precision with Manufacturability

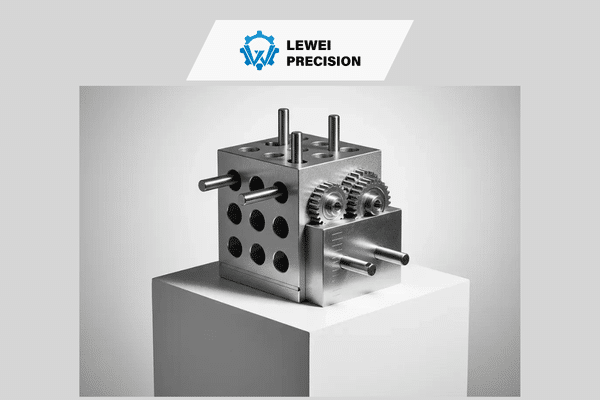

Tolerances and Features

CNC machining is known for its ability to achieve tight tolerances. However, specifying tolerances that are too stringent for the intended application or manufacturing process can lead to unnecessary costs.

Key Tolerance Guidelines:

  • General Tolerances: For most CNC applications, tolerances between ±0.005” and ±0.001” are achievable. For tighter tolerances, consider consulting with the manufacturer early in the design process.
  • Feature Relationships: The relationship between features such as holes, slots, and bosses should be considered. For example, perpendicularity and parallelism are more critical in certain applications than others, and excessively tight tolerances between unrelated features can complicate the machining process.
  • Surface Finish: Machining is inherently rougher than casting or forging, and specifying overly smooth finishes can add significant costs. Only specify finishes that are required for the function of the part.

It is also essential to consider how these tolerances will impact machining time, tool life, and part complexity. Less critical dimensions can be designed with slightly looser tolerances to optimize manufacturability.

3. Choosing the Right Geometries for CNC Machining

The design of a part’s geometry will have a substantial impact on both cost and complexity. CNC machining offers flexibility in creating intricate shapes, but certain features are easier to machine than others.

Features to Avoid or Modify:

  • Sharp Corners: Sharp internal corners are difficult to machine and can cause tool deflection or poor surface finish. Instead, use radii to allow the tool to access the feature more smoothly.
  • Deep Holes: Deep holes require specialized tooling and can result in excessive tool deflection. For best results, avoid excessively deep holes unless absolutely necessary.
  • Thin Walls and Sections: Parts with very thin walls may be prone to deformation during machining. Ensure adequate support and think about the order of operations.
  • Undercuts: Undercut features require specialized tooling and may need additional setup time. Where possible, modify the design to avoid undercuts or incorporate them in a way that minimizes complexity.
  • Protrusions: Long, narrow protrusions are prone to deflection and can complicate fixturing. Consider adding features to help support these areas.

A key strategy is designing parts that can be easily fixtured and machined with minimal tool changes. Using rounded edgeDs, removing excessive complexity, and optimizing tool paths can reduce machining time and improve the overall cost-effectiveness of the part.

4. Tooling and Fixturing Considerations

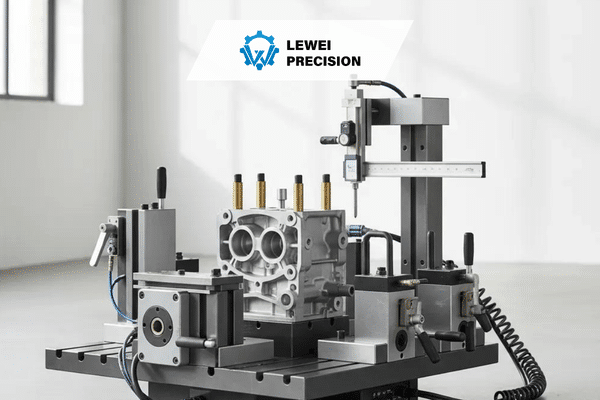

Tooling and Fixturing

Key Fixturing Guidelines:

  • Uniform Thickness: Parts with uneven thicknesses can cause distortion due to differences in cooling rates and cutting forces. Aim for uniform thickness where possible.
  • Fixturing Features: Design your parts with built-in features for fixturing. This might include flat surfaces, holes, or slots that can be used to mount the part securely during machining.
  • Avoid Over-Fixturing: While it’s essential to securely fixture a part, over-fixturing can cause stress or deformation. Only fixture the part where necessary and ensure it’s supported without restricting the machining process.

When designing parts for CNC machining, always keep in mind the limits of tool reach and the need for additional fixturing as part geometries become more complex.

5. Considering Machining Time and Costs

CNC machining can be a highly efficient manufacturing process, but inefficiencies in part design can drive up cycle time and tooling costs. Efficient designs ensure that operations like roughing, finishing, and tool changes are optimized to minimize time and cost.

Time-Saving Design Tips:

  • Use Standard Tool Sizes: If possible, use standard tool sizes to avoid custom tooling costs. Also, utilizing standard tools ensures that machines can perform operations without the need for tool changeover, reducing setup time.
  • Use the Full Cutting Area: Design parts so that they maximize the use of the tool’s cutting area to reduce unnecessary repositioning.
  • Avoid Complex Tool Paths: Keep the tool paths simple to minimize the complexity of the machining process. Complicated tool paths increase programming time and cycle time.

The balance between design complexity and production efficiency can significantly influence both the lead time and the overall cost of producing the part.

Common Pitfalls and What Happens When Things Go Wrong

CNC machining may seem straightforward, but poorly thought-out designs can cause significant production issues. Here are a few scenarios based on real-world experience:

1. Part Deflection

If a part is not properly fixtured or designed with enough rigidity, it can deflect during machining, leading to inaccuracies. This is especially common with thin-walled parts or long, narrow features. Ensuring that adequate support is incorporated into the design can prevent this issue.

2. Tool Wear and Surface Finish Problems

In designs that require aggressive cuts or operate at high speeds, tool wear can become a significant issue. A failure to account for tool wear in the design phase often results in poor surface finishes and dimensional deviations. Regular tool replacement schedules and the use of appropriate cutting conditions can mitigate these risks.

3. Part Warping or Distortion

When parts are machined from materials with high internal stresses, such as certain alloys or plastics, improper cooling can lead to warping or distortion. Incorporating uniform material thickness and considering the material’s behavior during machining can help prevent these issues.

Commercial Services and RFQ Considerations

When you approach a service provider for a CNC machining quote (RFQ), it’s important to have clear, comprehensive designs that follow these guidelines. A well-detailed RFQ can:

  • Reduce the time spent in design validation and prototyping.
  • Ensure that the supplier can meet your tolerances and volume requirements.
  • Improve the accuracy of the quote by providing more details about the machining process, material constraints, and fixturing needs.

Working with a commercial service like [SERVICE NAME] allows for design collaboration, ensuring that manufacturability is optimized early in the process.

Conclusion: Optimizing CNC Machining for Real-World Production

Designing for CNC machining requires more than just knowledge of CAD and CAM systems; it requires an understanding of the entire manufacturing process, from material properties to tooling to machining time. By applying these guidelines and considering both theoretical and practical elements of machining, you can ensure that your parts are both manufacturable and cost-effective.

FAQs

1.What material should I use for CNC machining?

The material selection depends on your part’s application. Metals like aluminum and steel are common, but materials such as titanium or Inconel are used for high-performance applications. Plastics like PEEK and PTFE are also machined using CNC for medical or aerospace parts.

2.How do tolerances affect CNC machining cost?

Tighter tolerances generally increase the machining cost due to the need for more precise tools, slower cutting speeds, and more frequent inspections. It’s important to balance required tolerances with what is realistically achievable and necessary.

3.How does part geometry impact CNC machining?

Complex part geometries may require multiple setups, specialized tooling, and longer machining times. Avoiding sharp corners, deep holes, and undercuts can reduce complexity and cost.

4.Can I use any software to generate CNC machine programs?

No, CNC programs are generated using CAM (Computer-Aided Manufacturing) software, which translates CAD (Computer-Aided Design) files into toolpaths for the CNC machine. Popular CAM software includes Mastercam, Fusion 360, and SolidWorks CAM.

5.How do I ensure my part is manufacturable for CNC?

Collaborate with your machining partner early in the design phase. Work with experienced machinists who can guide you on achievable tolerances, material considerations, and machining strategies.

6.What are the biggest mistakes engineers make in CNC design?

Common mistakes include overly complex geometries, improper tolerance specification, neglecting material constraints, and failing to consider tooling limitations.

7.How can I reduce CNC machining costs?

Use standard materials and tooling, simplify part designs to minimize tool changes, and optimize the design for efficient fixturing and machining processes. These steps can help reduce both material and operational costs.
