Choosing the Right CNC Milling: 3-Axis, 4-Axis, or 5-Axis?

Introduction: Understanding the Importance of CNC Milling in Modern Manufacturing

In the world of precision machining, choosing the right type of CNC (Computer Numerical Control) milling machine is one of the most important decisions manufacturers face. The process of CNC milling is widely used for a variety of applications, from creating prototypes to large-scale production runs. However, selecting between different types of CNC milling machines—3-axis, 4-axis, and 5-axis—depends on the complexity of the part, the material, the required precision, and production volume.

For engineers, OEM buyers, and procurement managers, understanding the key differences between 3-axis, 4-axis, and 5-axis CNC milling is critical. This decision impacts not only part quality and precision but also factors such as production cost, lead time, and tooling complexity. In this detailed article, we will explore the capabilities, limitations, and real-world scenarios for each of these types of CNC milling machines. By the end of this piece, you’ll have a comprehensive understanding of which CNC milling machine is best suited for your specific needs, whether you’re looking for a quick prototype or a high-volume production solution.

What is CNC Milling?

Before diving into the differences between 3-axis, 4-axis, and 5-axis milling, let’s first understand the fundamental principles of CNC milling.

CNC milling is a subtractive machining process where a rotating cutting tool is used to remove material from a workpiece, guided by a computer program that determines the motion of the cutting tool. CNC milling machines come with different numbers of axes, which are the directions in which the tool and the workpiece can move. The axes represent the movement of the cutting tool along the X, Y, and Z directions, as well as additional rotational axes in more advanced machines.

• 3-Axis Milling: The cutting tool moves along three axes (X, Y, and Z).
• 4-Axis Milling: In addition to the three linear axes, the workpiece can rotate around one axis (usually the A-axis).
• 5-Axis Milling: This adds two rotational axes (A and B) that allow the cutting tool to move in five directions simultaneously.

Each type of CNC milling machine offers different levels of complexity, precision, and flexibility. Let’s break down the differences in detail, examining each type’s specific capabilities and limitations.

3-Axis CNC Milling: The Foundation of CNC Machining

How 3-Axis CNC Milling Works

A 3-axis CNC milling machine operates on three primary axes—X, Y, and Z—which represent the machine’s movement in three-dimensional space:

• X-axis: Movement left to right (horizontal)
• Y-axis: Movement front to back (horizontal)
• Z-axis: Movement up and down (vertical)

In a 3-axis CNC machine, the workpiece remains fixed in place, and the cutting tool moves along these three axes to remove material. The cutting tool’s motion is limited to these three directions, which can make it more suitable for parts that do not require complex geometries or multiple angles.

Real-World Applications for 3-Axis CNC Milling

3-axis CNC machines are typically used for:

• Simple parts: Parts with flat or relatively simple geometries such as brackets, bases, and plates.
• Prototyping: 3-axis machines are ideal for prototyping, especially for low-volume runs and early-stage designs.
• Basic milling operations: Tasks like drilling, tapping, slotting, and facing.

While 3-axis machines are versatile for simple to moderately complex parts, they have limitations when it comes to machining parts with complex angles, deep cavities, or features that require multiple tool approaches.

Advantages of 3-Axis CNC Milling

• Lower cost: 3-axis machines are generally less expensive than 4-axis or 5-axis machines due to their simplicity and fewer moving parts.
• Ease of use: These machines are easier to operate and program compared to more advanced machines.
• Sufficient for basic tasks: For simpler parts, 3-axis milling is often more than enough to achieve high precision.

Limitations of 3-Axis CNC Milling

• Limited part complexity: 3-axis machines cannot easily handle parts that need multi-angle machining or complex geometries.
• Longer cycle times: More setups are required for multi-sided parts, which can lead to increased labor time and the risk of misalignment.

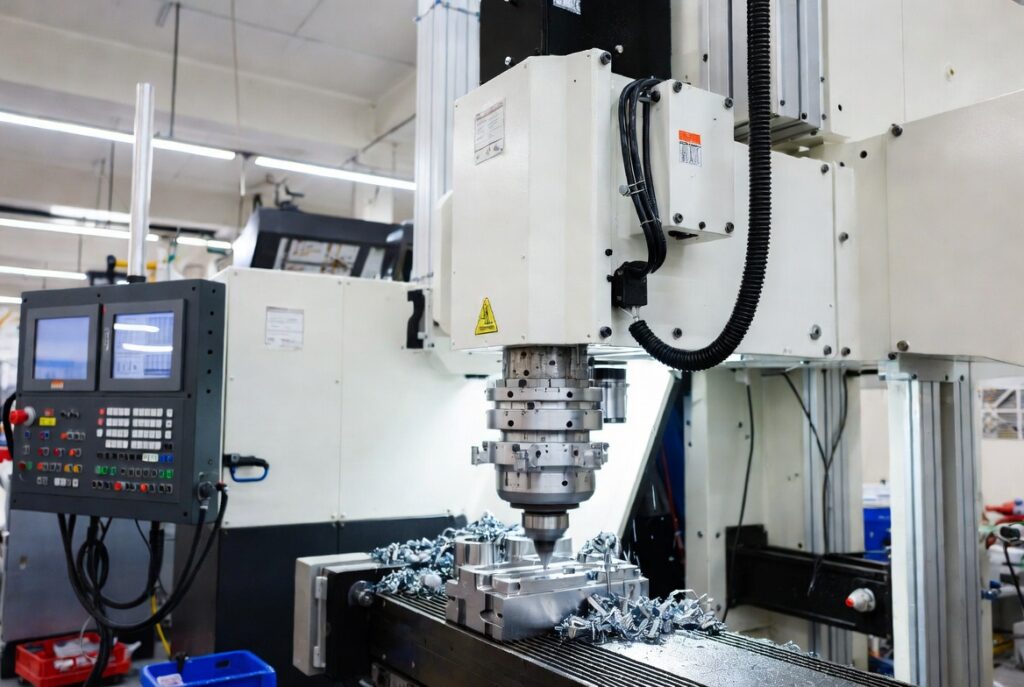

4-Axis CNC Milling: Increasing Flexibility and Precision

How 4-Axis CNC Milling Works

A 4-axis CNC milling machine builds on the foundation of the 3-axis machine by adding a rotating axis for the workpiece, typically referred to as the A-axis. This additional rotation allows the part to be rotated around the X-axis (or sometimes Y-axis), enabling the machine to machine multiple sides of the part in a single setup without repositioning the workpiece.

This extra degree of freedom allows for greater precision and efficiency, especially for parts that require machining on multiple faces or intricate contours.

Real-World Applications for 4-Axis CNC Milling

4-axis CNC machines are ideal for:

• More complex parts: Parts that require multiple sides to be machined without multiple setups.
• Parts with features that extend along multiple faces: For example, automotive components or housings with grooves that need to be cut into different faces.
• Short-run production: When a relatively higher degree of complexity is needed but not to the level of full 5-axis machining.

Advantages of 4-Axis CNC Milling

• Increased flexibility: The ability to rotate the workpiece allows for faster and more efficient machining of multi-sided parts.
• Reduced part handling: Fewer setups mean less risk of misalignment and less time spent repositioning the workpiece.
• Improved precision: As all machining is done in one setup, there’s a lower risk of errors caused by repositioning.

Limitations of 4-Axis CNC Milling

• Limited angular movement: The A-axis allows for rotation, but you are still restricted in the ability to cut from multiple angles simultaneously.
• Increased machine complexity: 4-axis machines are more complex and expensive than 3-axis machines, and they require more advanced programming skills.

5-Axis CNC Milling: Unlocking Advanced Capabilities

How 5-Axis CNC Milling Works

A 5-axis CNC milling machine takes the 4-axis system a step further by adding two more rotational axes—usually the B-axis and C-axis—which provide full freedom of movement. This enables the cutting tool to approach the workpiece from virtually any angle, allowing for complex geometries and undercut features to be machined in a single setup.

The B-axis typically rotates around the Y-axis, and the C-axis rotates around the Z-axis, making the cutting tool capable of moving in five different directions simultaneously (X, Y, Z, A, and B). This significantly enhances precision, speed, and versatility, especially for highly complex and precise parts.

Real-World Applications for 5-Axis CNC Milling

5-axis CNC machines are ideal for:

• Complex, high-precision parts: Aerospace components, medical implants, molds, and dies that require intricate geometries and tight tolerances.
• Parts with undercuts: Parts with geometries that would be impossible to machine using 3-axis or 4-axis machines due to the complexity of the angles involved.
• Single-setup machining: The ability to machine all sides of a part in one setup minimizes the need for repositioning and maximizes machining efficiency.

Advantages of 5-Axis CNC Milling

• Enhanced precision: The ability to approach the part from multiple angles reduces errors caused by multiple setups and repositioning.
• Increased part complexity: 5-axis machines can handle the most complex geometries and undercuts with ease.
• Faster turnaround time: Parts that would normally require multiple setups can be machined in a single session, significantly reducing lead times.
• Higher quality: Reduced human error and the ability to achieve tighter tolerances mean that 5-axis machining is ideal for high-precision industries.

Limitations of 5-Axis CNC Milling

• Higher cost: 5-axis machines are more expensive to purchase, operate, and maintain due to their complexity and precision.
• Increased programming complexity: Programming 5-axis machines is more challenging, requiring more expertise and experience from machinists and programmers.
• Tool accessibility: The cutting tool’s range of motion can sometimes be restricted by the machine’s design, making access to certain features more difficult.

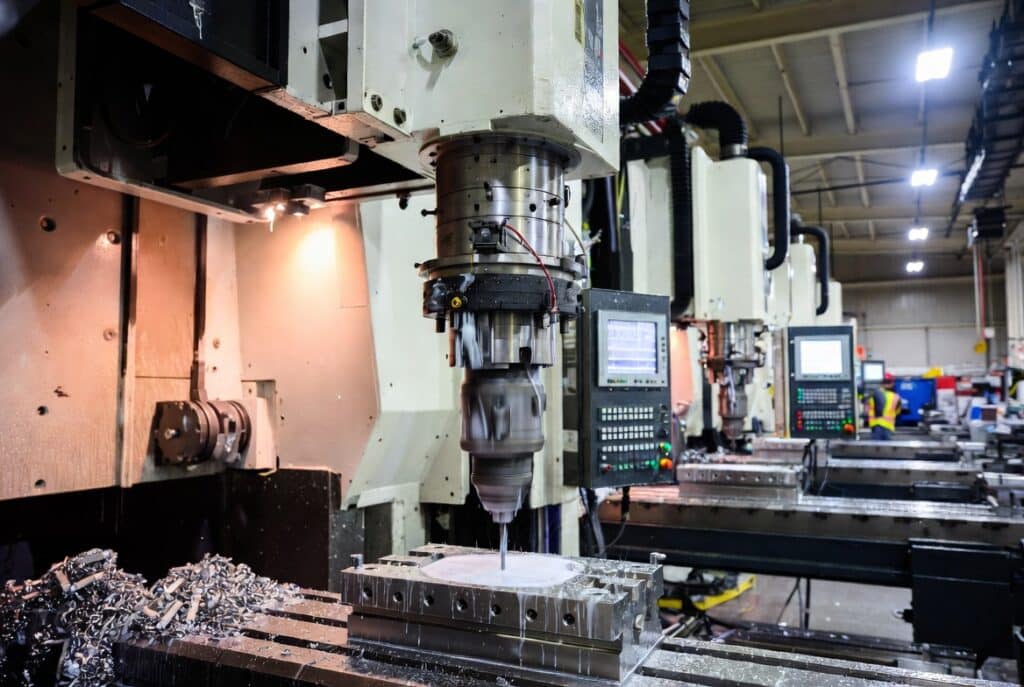

Real-World Decision-Making in CNC Milling

When choosing between 3-axis, 4-axis, or 5-axis CNC milling, engineers must consider several factors that influence production decisions:

1. Part Complexity

• 3-Axis: Best suited for simpler, flat, or moderately complex parts.
• 4-Axis: Ideal for parts that require multiple faces to be machined in a single setup.
• 5-Axis: Necessary for highly complex, detailed parts, such as aerospace or medical components that require undercuts, tight tolerances, and intricate geometries.

2. Production Volume

• 3-Axis: Efficient for low to moderate volume production, especially for prototypes or simple parts.
• 4-Axis: Suitable for medium volume production where multi-sided machining is required.
• 5-Axis: Best for high-volume production of complex parts, where reduced setup times and high precision are critical.

3. Precision and Tolerances

• 3-Axis: Offers good precision but may struggle with tighter tolerances over complex geometries.
• 4-Axis: Improved precision for parts that require multi-face machining.
• 5-Axis: Offers the highest precision for complex geometries and tight tolerances, minimizing human error and setup misalignment.

4. Material and Tooling Requirements

• 3-Axis: More suited for softer materials that don’t require complex tool paths.
• 4-Axis: Works well for materials that need multi-sided cuts and moderate to complex toolpaths.
• 5-Axis: Best for hard materials requiring intricate cuts, such as titanium in aerospace applications.

Conclusion: Making the Right Choice for Your Milling Needs

Choosing between 3-axis, 4-axis, and 5-axis CNC milling machines depends on a variety of factors, including part complexity, production volume, precision requirements, and material types. Understanding the strengths and limitations of each machine type allows manufacturers to make informed decisions that align with their production needs, ensuring efficiency and cost-effectiveness.

By carefully evaluating these factors and understanding the practical applications, engineers, OEM buyers, and procurement managers can optimize their CNC milling strategies for the highest quality and best return on investment.
