Applications of CNC Milling Across Industries: An In-Depth Engineering Guide

As a senior manufacturing engineer with over two decades on the shop floor, I’ve seen CNC milling evolve from a novelty in precision work to the backbone of modern production. You’ve got parts that need to hold tolerances tighter than 0.001 inches, materials that fight back like titanium alloys, and deadlines that don’t care about tool breakage or setup errors. This guide dives into the applications of CNC milling across industries, starting from the machine fundamentals and building up to the decision logic that keeps production lines running. We’ll cover how the process actually operates in real environments, why engineers pick certain strategies, and what happens when variables like coolant flow or spindle speed go off-script. By the end, you’ll have the tools to evaluate if CNC milling fits your project and how to avoid the pitfalls that send batches to scrap.

The global CNC machines market stands at USD 79.14 billion in 2026, projected to reach USD 104.76 billion by 2031 with a CAGR of 5.78%, driven by demands in aerospace, automotive, and medical sectors for tighter tolerances and digital integration. Meanwhile, the CNC milling machines segment alone is estimated at USD 87.96 billion in 2026, growing to USD 120.82 billion by 2035 at a CAGR of 3.60%. These numbers reflect the push for automation in high-stakes industries where manual machining can’t keep up with complexity or volume.

Fundamentals of CNC Milling

CNC milling starts with a solid block of material clamped to a table, where a rotating cutter removes stock to form the final shape. But it’s not just about subtraction; it’s about controlling every axis of motion to achieve geometries that would tie a manual machinist in knots.

What Exactly Is CNC Milling?

CNC stands for Computer Numerical Control, where software dictates the machine’s movements. Unlike manual milling, where an operator cranks handles based on feel and blueprints, CNC uses programmed paths for repeatability. In practice, this means you can run 100 parts overnight with the same precision as the first, assuming your setup holds. I’ve programmed mills for everything from simple brackets to multi-cavity molds, and the key is understanding that CNC milling excels at creating prismatic parts—those with flat surfaces, pockets, slots, and contours.

The process handles a range of scales, from micro-milling for electronics components down to 0.010-inch features to large gantry mills for aerospace frames spanning feet. Tolerances typically range from ±0.005 inches for general work to ±0.0005 inches or better in aerospace, where even minor deviations can cause aerodynamic issues or structural failures.

How CNC Milling Actually Works: A Step-by-Step Breakdown

Start with design: Engineers use CAD software like SolidWorks or Fusion 360 to model the part. This isn’t just drawing lines; you factor in material properties, like how aluminum chips versus stainless steel’s stringy swarf that can jam tools.

Next, CAM software (Computer-Aided Manufacturing) translates the model into G-code—commands like G01 for linear moves or M03 for spindle start. G-code tells the machine where to go, at what feed rate (inches per minute), and spindle RPM. For example, roughing a steel block might run at 800 RPM with a 0.100-inch depth of cut to hog out material quickly, while finishing passes drop to 0.010-inch depth at 2000 RPM for surface quality.

On the floor, setup is critical. You fixture the workpiece—maybe using vises for small parts or custom jigs for odd shapes. Probe the stock to set zero points, load tools into the carousel (end mills, ball mills, drills), and hit cycle start. The machine moves along X, Y, Z axes, with coolant flooding to manage heat and evacuate chips. In a real run, you monitor for anomalies: unusual sounds signal chatter, where vibrations cause poor finishes or tool breakage.

Post-machining involves deburring, inspection with CMMs (Coordinate Measuring Machines), and sometimes heat treatment if the process induced stresses. I’ve seen runs where improper coolant led to thermal expansion, throwing dimensions off by 0.002 inches—enough to scrap aerospace parts.

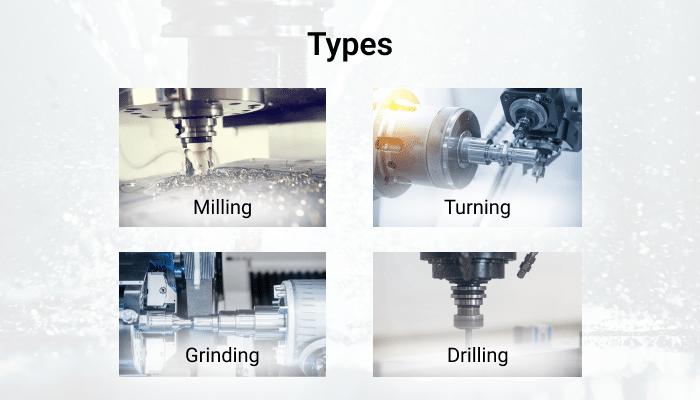

Types of CNC Milling Machines and When to Use Them

3-axis mills move in X, Y, Z—great for flat parts like plates or simple housings. But for undercuts or compound angles, you need 4-axis (adds rotation around X or Y) or 5-axis (full simultaneous motion). In automotive, 3-axis suffices for engine blocks, but aerospace turbine blades demand 5-axis to machine curved surfaces without repositioning, reducing setup errors.

Horizontal mills excel at heavy cutting with better chip evacuation, ideal for large steel forgings in energy sectors. Vertical mills are more common for versatility. Choice depends on part size, material, and volume: high-mix low-volume favors versatile VMCs (Vertical Machining Centers), while production runs lean toward HMCs for speed.

Materials in CNC Milling: Selection Logic and Challenges

Materials drive everything. Aluminum (6061 or 7075) mills easily, with high speeds and feeds for quick cycles—common in electronics for heat sinks. Steel (1018 mild or 4140 alloy) requires slower speeds to avoid tool wear, used in automotive gears.

Titanium in aerospace offers strength-to-weight but work-hardens, causing rapid tool dulling. You combat this with high-pressure coolant and rigid setups. Plastics like Delrin or PEEK in medical devices mill cleanly but can melt if speeds are too high.

Why choose one? Trade-offs: Titanium’s durability justifies cost in defense, but aluminum’s machinability cuts time in prototypes. When wrong: Milling brittle composites without vacuum fixturing leads to delamination, scrapping parts.

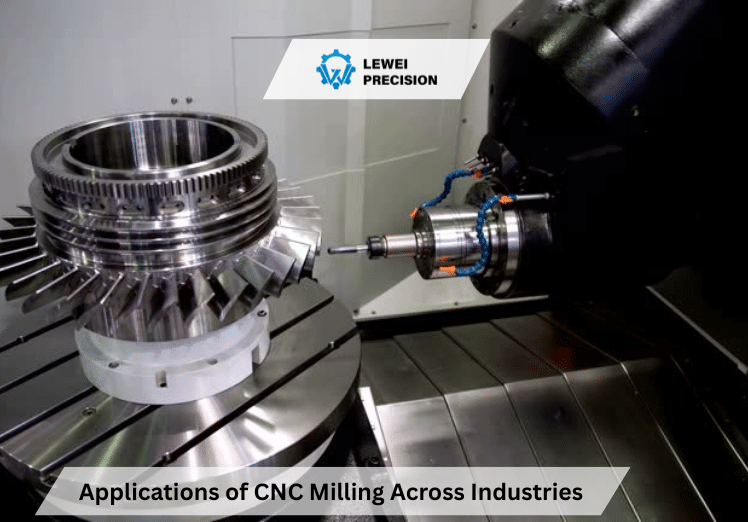

Applications of CNC Milling in the Aerospace Industry

Aerospace pushes CNC milling to its limits, with parts enduring extreme stresses, temperatures, and regulations like AS9100. Tolerances under 0.0002 inches aren’t optional; they’re mandatory for safety.

Key Components Produced via CNC Milling

Think turbine blades: 5-axis milling carves airfoil shapes from Inconel or titanium, with cooling channels drilled internally. Airfoils, antennae, landing gear components, manifolds, and bushings all rely on milling for precise contours. Structural elements like wing ribs and spars get pocketed to reduce weight while maintaining strength.

In a real scenario, milling an engine casing involves roughing with carbide end mills to remove bulk, then finishing with ball mills for smooth radii. I’ve overseen runs where vibration from thin walls caused chatter marks, fixed by adaptive toolpaths that adjust feeds dynamically.

Challenges and Decision Logic in Aerospace Milling

Materials like titanium alloys (Ti-6Al-4V) resist cutting, generating heat that warps parts. Engineers opt for trochoidal milling—circular paths to minimize tool engagement—or cryogenic cooling to freeze chips. Why? Full-slot cuts overheat, leading to subsurface damage detectable only by NDT (Non-Destructive Testing).

Limitations: 5-axis machines cost more, and programming takes hours. But the payoff is one-setup machining, avoiding errors from reclamping. When things go wrong: Tool deflection in deep pockets throws tolerances, causing aerodynamic inefficiencies or failures in flight. Procurement managers weigh this against costs—outsourcing to certified CNC milling services ensures compliance without in-house investment.

For OEM buyers, linking to specialized aerospace CNC milling services provides access to validated processes.

Real-World Scenarios from the Shop Floor

Recall a project for satellite components: We milled aluminum housings with EMI shielding slots. A programming error in Z-depth led to overcuts, scrapping the first batch. Lesson: Always simulate in CAM and dry-run on the machine. Human factor: Operators catch issues like worn tools before they cascade.

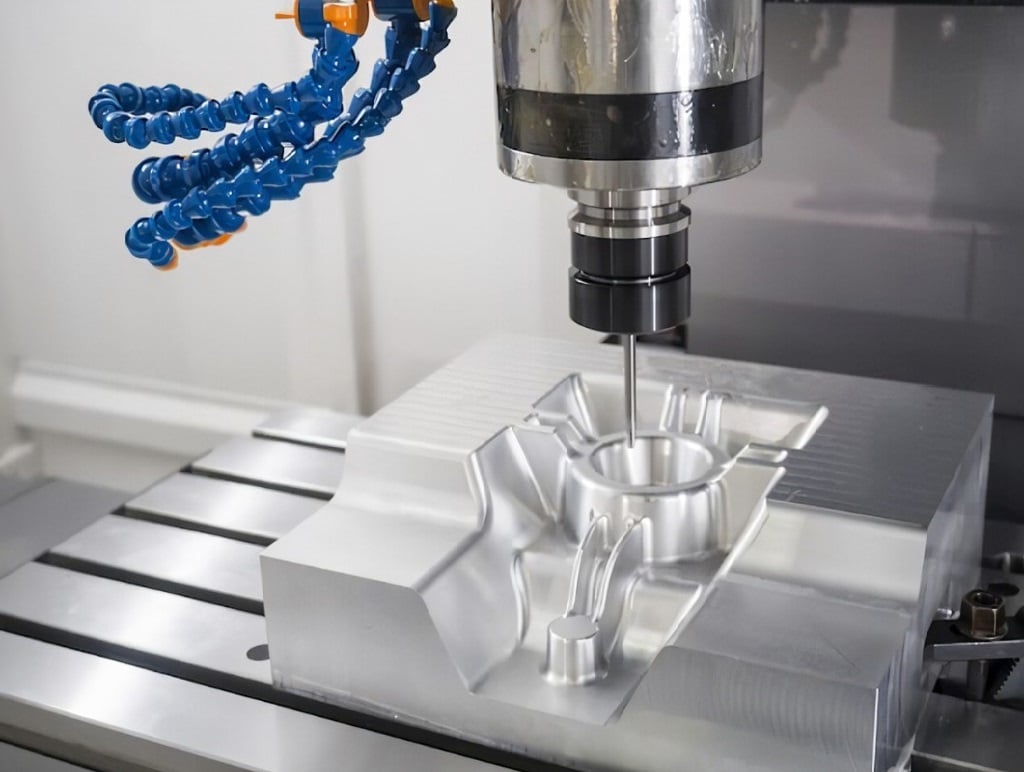

Applications of CNC Milling in the Automotive Industry

Automotive demands volume and durability, with CNC milling handling everything from prototypes to production.

Essential Parts and Processes

Engine blocks start as castings, then milled for cylinder bores and mounting faces. Gearboxes, axles, valves, cylinder heads, dashboard panels, and gas gauges use multi-axis milling for precise fits. In EVs, battery trays get lightweight designs via pocket milling in aluminum.

Process: High-speed machining (HSM) at 10,000+ RPM roughs quickly, followed by finishing for Ra 32 microinch surfaces. Why HSM? Reduces cycle time by 50% in high-volume runs.

Trade-Offs, Limitations, and Troubleshooting

Steel parts wear tools faster than aluminum, so carbide coatings extend life. Limitation: Complex internals require EDM backup for unreachable areas. Decision: For custom racing parts, 5-axis milling justifies cost; for mass production, transfer lines integrate milling with other ops.

Issues: Chatter in thin-walled suspension arms—solve with damping fixtures or lower feeds. Scenario: Milling transmission cases, coolant contamination caused corrosion; fixed by daily checks and filtration.

Engineers link to automotive CNC milling services for scalable production.

Applications of CNC Milling in the Medical and Healthcare Industry

Medical parts save lives, so biocompatibility and precision rule.

Critical Components and Material Choices

Orthopedic implants like hip replacements use 5-axis milling on titanium for custom fits. Bone screws, plates, surgical instruments (forceps, clamps, blades), pacemakers, prosthetics, and endoscopic tools demand sterile finishes.

PEEK for spinal implants mills smoothly but requires sharp tools to avoid burrs that irritate tissue.

Why CNC Milling Excels Here, and Potential Pitfalls

FDA regs require traceability, so CNC’s repeatability shines. How: Micro-milling for tiny features in catheters. Limitation: Soft materials like silicone gum up, needing specialized cutters.

When wrong: Dimensional drift from heat in plastics—use air blast cooling. Scenario: Milling dental crowns, incorrect feeds cracked zirconia; adjusted to peck cycles.

Buyers turn to medical CNC milling services for ISO 13485 compliance.

Applications of CNC Milling in the Electronics Industry

Electronics need small, heat-managing parts with tight fits.

Common Applications and Techniques

Heat sinks milled with fins for cooling; enclosures, connectors, PCBs, sockets, and circuit components use 3-axis for flat profiles. Smartphone casings get aesthetic contours.

High-precision: Vacuum fixturing for thin aluminum to prevent warping.

Challenges in Miniaturization and Solutions

Copper’s conductivity aids but smears; diamond-coated tools prevent buildup. Limitation: ESD risks in cleanrooms—grounded machines essential.

Issue: Overmilling slots in PCBs shorts circuits; probe calibration prevents. Link to electronics CNC milling services.

Applications of CNC Milling in the Defense and Military Industry

Defense requires ruggedness under fire.

Key Parts and Durability Focus

Barrels, receivers, trigger mechanisms, propeller shafts, engine parts, armor plating, main rotor hubs, couplers, missile components, and retainer rings.

Hardened steels milled with ceramic inserts for wear resistance.

Strategic Decisions and Field Realities

Why multi-axis? Compound angles in vehicle mounts. Limitation: Classified designs limit outsourcing.

Wrong: Vibration in long overhangs breaks tools—shorten or use steady rests. Scenario: Milling ammo hoists, material inclusions caused fractures; switched suppliers.

Access defense CNC milling services for ITAR compliance.

Applications of CNC Milling in the Energy and Renewable Sector

Energy parts handle rotation and pressure.

Components for Power Generation

Valves, pistons, cylinders, turbine blades, bearings, hydro generator housings, bushings, solar panel frames, wind turbine blades.

Balanced milling prevents vibration in rotating assemblies.

Efficiency Trade-Offs and Maintenance Insights

Inconel for high-heat; slow feeds extend tool life. Limitation: Large parts need gantry mills, expensive.

Issue: Imbalanced blades cause turbine failures—post-mill balancing critical. Link to energy CNC milling services.

Other Notable Applications of CNC Milling

Marine: Hull fittings, deck structures.

Consumer: Molds for plastics.

Jewelry: Engravings on rings.

Furniture: Carved legs.

These extend versatility, but core logic remains precision and repeatability.

Trade-Offs and Limitations of CNC Milling

Vs turning: Milling for non-round; turning faster for cylinders.

Vs 3D printing: Milling for strength in metals; printing for complexity but weaker.

Costs: Setup $500-5000; runtime $50/hour. Limitations: Can’t reach internal features without splitting parts.

Decision: Use when tolerances <0.005 inches and volumes 10-10,000.

Decision Making for CNC Milling Projects

Assess part geometry, material, volume. Prototype in-house; produce via service.

Factors: Machine capability, lead time (2-4 weeks), cost per part.

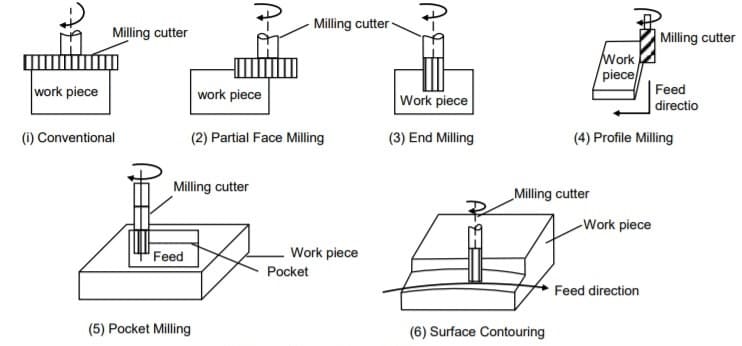

Common Issues and Troubleshooting in CNC Milling

Even in modern CNC shops with high-end machines and advanced CAM software, machining problems still occur. CNC milling is a controlled process, but it involves heat, force, vibration, material behavior, and tool wear. When any one of these variables shifts outside acceptable limits, production issues appear.

Experienced machinists learn quickly that most machining problems are not random. They usually trace back to a small number of root causes such as improper cutting parameters, weak fixturing, tool wear, or thermal effects.

Understanding how these problems appear on the machine and how to correct them quickly is critical for maintaining production efficiency and protecting expensive parts and tools.

Below are the most common issues encountered during CNC milling and the practical troubleshooting strategies used in real manufacturing environments.

Overheating During Milling Operations

Heat is a constant factor in machining. Every time a cutting tool engages material, friction and plastic deformation generate heat at the cutting zone.

If heat builds up faster than it can dissipate, several problems occur.

The cutting tool begins to lose hardness, the workpiece material may expand, and the surface finish deteriorates. In extreme cases, the tool edge can burn or chip.

Signs of Overheating

Machinists usually recognize overheating through several indicators:

• Discoloration of chips, often turning dark blue or purple

• Burning smell near the cutting area

• Rapid tool wear or edge breakdown

• Poor surface finish on the machined surface

• Workpiece expansion affecting dimensional accuracy


Causes of Overheating

The most common causes include:

• Excessive spindle speed for the material

• Insufficient coolant delivery

• Dull cutting tools

• High feed rate combined with deep cutting passes

• Incorrect tool coating for the material being machined


Titanium machining is particularly sensitive to heat buildup. Because titanium does not conduct heat efficiently, most of the heat remains concentrated at the cutting edge.

Practical Solutions

Machining engineers typically apply several adjustments to control overheating.

Reduce cutting speed slightly while maintaining feed rate to preserve chip formation.

Increase coolant flow or switch to high pressure coolant delivery systems. High pressure coolant can reach the cutting zone more effectively and evacuate chips.

Use coated carbide or ceramic tools designed for high temperature machining environments.

Sometimes changing the cutting strategy helps. For example, adaptive toolpaths distribute cutting forces more evenly and reduce heat buildup.

Chatter and Vibration Problems

Chatter is one of the most frustrating issues in CNC milling. It produces a distinctive rattling sound and leaves visible vibration marks on the machined surface.

Chatter occurs when cutting forces cause the tool or workpiece to vibrate in a repeating pattern. Once vibration begins, it can rapidly worsen and damage both the tool and the part.

Symptoms of Chatter

Experienced machinists recognize chatter through:

• Visible wave patterns on the machined surface

• Loud vibrating sound during cutting

• Rapid tool wear

• Inconsistent surface finish

• Reduced dimensional accuracy


Chatter is especially common when machining thin walls, long tools, or deep cavities.

Root Causes of Chatter

Several factors contribute to chatter.

Weak fixturing allows the workpiece to move slightly during cutting.

Long tool overhang increases tool deflection.

Incorrect spindle speed may excite the natural vibration frequency of the tool.

Aggressive stepovers or cutting depths can amplify vibration forces.

Troubleshooting Strategies

Machinists often begin by improving rigidity.

Shortening the tool overhang reduces deflection significantly.

Repositioning clamps or adding support fixtures can stabilize the workpiece.

Another common solution involves adjusting spindle speed. Sometimes increasing or decreasing RPM slightly moves the cutting frequency away from the resonance frequency.

Modern CAM software also offers high efficiency milling strategies that maintain constant tool engagement, reducing the likelihood of chatter.

Dimensional Errors and Tolerance Drift

Dimensional accuracy is one of the primary reasons companies choose CNC machining. However, maintaining tight tolerances requires careful attention to machine calibration, thermal conditions, and tool wear.

Even a small deviation in machine geometry can result in measurable errors.

Typical Dimensional Problems

Manufacturers often encounter issues such as:

• Parts measuring oversize or undersize

• Holes slightly out of position

• Flat surfaces that are not perfectly planar

• Inconsistent dimensions between batches


These problems are especially critical in aerospace and medical manufacturing where tolerances may be within a few microns.

Causes of Dimensional Errors

Several factors influence dimensional accuracy.

Machine calibration may drift over time due to wear or thermal expansion.

Tool deflection occurs when cutting forces bend the tool slightly during machining.

Thermal expansion of the workpiece can also cause measurement errors.

For example, aluminum parts machined at high temperatures may shrink slightly once they cool.

Corrective Actions

Regular machine calibration and verification using precision instruments such as laser interferometers help maintain machine accuracy.

Tool compensation values can be adjusted within the CNC control to account for tool wear.

For extremely precise components, machinists often perform roughing operations first, allowing the part to stabilize before finishing passes.

In high precision environments, climate controlled machining rooms help maintain consistent temperatures and reduce thermal expansion effects.

Tool Breakage During Machining

Cutting tools are expensive consumables, and unexpected tool breakage can disrupt production schedules and damage parts.

Tool breakage typically occurs when cutting forces exceed the mechanical strength of the tool.

Warning Signs Before Tool Failure

Experienced machinists often notice warning signs before a tool breaks.

Increased cutting noise or vibration

Declining surface finish

Unexpected spikes in spindle load

Chips becoming irregular or powder like

Ignoring these signs increases the risk of sudden tool failure.

Causes of Tool Breakage

Several factors contribute to tool breakage.

Aggressive feed rates or cutting depths create excessive cutting forces.

Tool wear weakens the cutting edge.

Incorrect tool selection for the material can cause edge chipping.

Chip accumulation around the cutting zone can also trap heat and stress the tool.

Prevention Methods

Modern CNC machines often include tool monitoring systems that track spindle load and detect abnormal cutting conditions.

Some machines use automatic tool breakage detection sensors.

Machinists also schedule preventive tool changes after a defined number of parts to avoid unexpected failure during long production runs.

Selecting proper tool coatings and geometries for each material significantly extends tool life.

Programming Errors and Toolpath Issues

Not all machining problems originate from hardware. Programming mistakes in CAM software can create serious production issues.

Incorrect toolpaths may cause the tool to collide with the workpiece or fixture.

Even small programming mistakes can lead to expensive scrap parts.

Common Programming Mistakes

Typical CAM programming issues include:

Incorrect tool selection in the program

Improper entry and exit strategies

Missing clearance heights

Wrong coordinate system references

These mistakes often occur when machining programs are rushed or insufficiently verified.

Best Practices for Avoiding Programming Errors

Simulation software should always be used to verify toolpaths before running a program on the machine.

Dry runs without cutting material allow machinists to observe tool movement safely.

Many shops also implement standardized program review procedures to catch potential errors before production begins.

Chip Control Problems

Chip formation may seem minor, but poor chip control can cause serious machining issues.

If chips accumulate around the cutting area, they can interfere with the cutting process and damage both the tool and workpiece.

Signs of Chip Control Issues

Long stringy chips wrapping around tools

Chips clogging coolant lines

Poor surface finish due to chip recutting

Heat buildup in the cutting zone

Solutions

Selecting tools designed for effective chip breaking improves chip evacuation.

Adjusting feed rate and depth of cut can also influence chip formation.

High pressure coolant systems help flush chips away from the cutting area, particularly in deep pocket milling operations.

Machine Calibration and Alignment Issues

Over time, machine components experience wear and mechanical drift.

Even high quality CNC machines require periodic calibration.

Common calibration issues include:

Axis positioning errors

Spindle misalignment

Backlash in lead screws

Geometric inaccuracies between machine axes

Manufacturers typically schedule regular machine inspections and calibration procedures to maintain precision.

Real Shop Floor Experience from Overnight Production Runs

One lesson many machining teams learn the hard way involves unattended night operations.

Running machines overnight can increase production efficiency, but it also introduces risk if problems occur while operators are not present.

One of the most common causes of overnight failure is ignored machine alarms.

If the machine stops due to tool breakage, coolant flow interruption, or spindle overload, the entire production batch may be delayed until morning.

Experienced production managers mitigate this risk by implementing several safeguards.

Automatic alarm notifications can be sent to engineers or supervisors through mobile monitoring systems.

Tool life monitoring ensures tools are replaced before reaching critical wear levels.

Critical jobs are sometimes scheduled earlier in the shift when operators are available to monitor machining conditions.

These small precautions often prevent hours of lost production time.

Final Thoughts on Troubleshooting CNC Milling

Troubleshooting CNC milling problems requires both technical knowledge and practical experience.

Most machining problems originate from interactions between cutting parameters, tooling conditions, machine rigidity, and material behavior.

Effective troubleshooting begins by identifying the root cause rather than simply adjusting cutting parameters blindly.

Engineers and machinists who understand these relationships can resolve issues quickly and maintain consistent production quality.

Over time, developing this diagnostic skill becomes one of the most valuable assets in a manufacturing environment.

Case Studies: Real Manufacturing Scenarios

Aerospace: Milled titanium bracket; vibration fixed by harmonic analysis.

Automotive: EV tray; optimized pockets cut weight 20%.

Medical: Implant; custom toolpath ensured biocompatibility.

Selecting a Professional CNC Milling Service

Look for certifications, machine fleet, material expertise. Request RFQs for quotes—our precision CNC milling services handle complex projects with quick turns.

Conclusion

CNC milling drives innovation across industries by delivering precision under pressure. From aerospace’s extreme tolerances to energy’s balanced assemblies, it balances trade-offs in cost, time, and quality. Engineers and buyers, evaluate your needs against these insights—when ready, submit an RFQ to professional CNC milling services for tailored solutions that keep your production on track.

FAQs
