Computer numerical control (CNC) milling has become the backbone of precision manufacturing across industries worldwide. The global CNC machine market reached $95.29 billion in 2024 and continues growing as manufacturers demand higher accuracy and efficiency. Understanding different types of CNC machines helps businesses select the right equipment for their production needs.
Modern manufacturing requires precision, speed, and versatility. Each type of CNC machine offers unique capabilities suited to specific applications—from small-scale prototyping to high-volume production runs. Various types of CNC machines work differently, and choosing the right CNC mill directly impacts production efficiency, part quality, and overall manufacturing costs. These machine tools have revolutionized how complex parts are manufactured today.

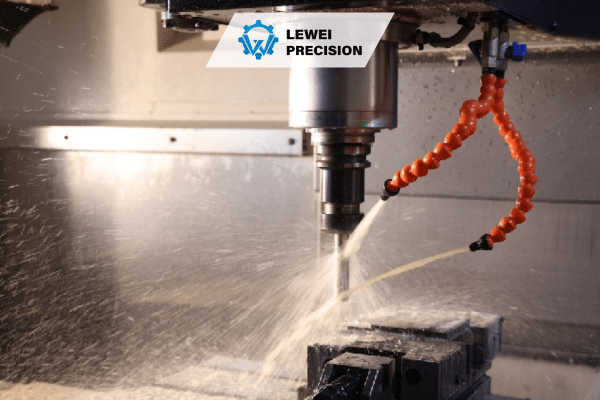

1. Vertical CNC Milling Machine
Key Features of Vertical CNC Milling Machine:
Vertical milling machines position the spindle perpendicular to the worktable, making them the most common type of CNC mill in machine shops today. The cutting tool moves along the vertical axis while the workpiece remains stationary on the table below. This type of cnc machine excels at drilling machines operations and face milling tasks.
- Spindle oriented vertically for better visibility and milling operations
- Compact footprint saves valuable floor space compared to manual machines
- Simple setup and operation for operators learning the milling process
- Direct chip evacuation through gravity during milling operations
Advantages:
The vertical orientation provides several practical benefits in daily operations. Operators can easily monitor the cutting process with these mill machines and make quick adjustments when needed. These machines use standard milling tools and come with proven reliability.
- Cost efficiency: Lower initial investment compared to horizontal milling machine options
- Versatile material handling: Works with metals, plastics, and composite materials
- Precision accuracy: Maintains tolerances within ±0.005mm for detailed machine parts
- Quick tool changes: Manual or semi-automatic tool changing systems
Applications:
Small to medium-sized manufacturers rely heavily on vertical mills for diverse production tasks. These machines are ideal for job shops where flexibility matters more than production volume, especially when producing complex parts.
- Prototype development and testing
- Custom part manufacturing
- Mold and die production
- Educational institutions and training facilities

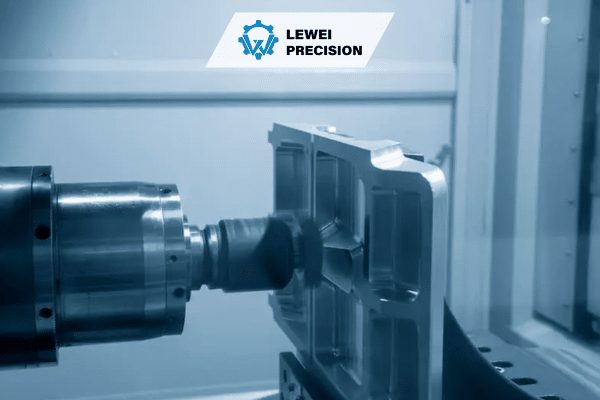

2. Horizontal CNC Milling Machine
Key Features of Horizontal CNC Milling Machine:
Horizontal milling machines mount the spindle parallel to the worktable, creating a fundamentally different cutting approach from vertical and horizontal milling machines setups. This design allows chips to fall away naturally, preventing accumulation around the cutting area during the cnc milling process.
- Horizontal spindle orientation improves chip removal in milling operations
- Multiple pallet systems enable continuous operation
- Robust construction handles heavy workpieces and machine parts
- Extended tool magazine capacity up to 60+ milling tools
Advantages:
The horizontal configuration delivers superior performance in high-volume production environments. Manufacturing facilities processing large batches benefit from reduced cycle times with these cnc machine tools. These machines work continuously with minimal downtime.
- Enhanced stability: Heavier base construction reduces vibration
- Faster production: Simultaneous cutting on multiple sides possible
- Better tool life: Efficient coolant flow and chip evacuation
- Automated operation: Pallet changers minimize manual intervention
Applications:
Automotive and aerospace manufacturers depend on horizontal mills for mass production of critical components. The machine capabilities allow running unmanned shifts, making them ideal for lights-out manufacturing.
- Engine blocks and cylinder heads
- Transmission housings
- Large aerospace structural components
- Heavy equipment parts
3. 5-Axis CNC Milling Machine
Key Features of 5-Axis CNC Milling Machine:
Five-axis technology represents the cutting edge of multi-axis cnc capabilities. These advanced cnc machines move tools along three linear axes (X, Y, Z) and rotate on two additional axes (A and B), accessing workpieces from virtually any angle. The 5-axis cnc machine offers machine capabilities beyond traditional 3-axis cnc equipment.
- Simultaneous 5-axis movement for complex geometries
- Single-setup machining reduces repositioning errors
- Advanced toolpath strategies optimize cutting efficiency with milling cutter technology
- Real-time collision detection ensures safety
Advantages:
The technology eliminates multiple setups that plague traditional 3-axis cnc machining. Parts previously requiring several operations can now be completed in one cycle with 5-axis cnc milling, dramatically improving accuracy. These machines are typically used for the most demanding applications.
- Complex geometry capability: Creates intricate shapes impossible with 3-axis machines
- Superior surface finish: Continuous tool contact produces smoother surfaces
- Reduced setup time: Complete parts in single operations save hours
- Better tool access: Shorter tools reach tight spaces without interference
Applications:
Aerospace and medical device manufacturers adopted 5-axis machine technology early, driven by demanding quality requirements. The investment pays off when producing high-value, complex parts that other types of cnc milling machines cannot handle.
- Turbine blades and impellers
- Medical implants and surgical instruments
- Automotive prototype development
- Mold cores with undercuts
4. Vertical Machining Center (VMC)
Key Features of Vertical Machining Center (VMC):
Vertical machining centers elevate standard vertical milling machines with automation features. An automatic tool changer (ATC), high-speed spindle, and advanced control systems transform these cnc milling machines into production powerhouses. This common type combines the benefits of traditional mills with modern automation.
- 20-40 tool ATC minimizes manual intervention
- Spindle speeds reaching 15,000+ RPM for various milling operations
- Through-spindle coolant for improved cutting performance
- Probe systems for automatic workpiece alignment
Advantages:
VMCs bridge the gap between manual machines and full automation. Mid-sized manufacturers gain production capacity without the cost of dedicated transfer lines. These machines come with integrated control systems for efficient operation.
- Increased throughput: Automated tool changes cut cycle times by 30-40%
- Consistent quality: Computerized control eliminates operator variability
- Flexible programming: CAM software integration streamlines setup
- Lower labor costs: One operator manages multiple machines
Applications:
Contract manufacturers favor VMCs for their ability to switch between different jobs quickly. The machines adapt to changing production demands without major reconfiguration, handling various types of cnc milling requirements.
- Aerospace brackets and fittings
- Medical device components
- Electronics housings and heat sinks
- Automotive transmission parts
5. CNC Horizontal Machining Center (HMC)
Key Features of CNC Horizontal Machining Center (HMC):
Horizontal machining centers combine horizontal mill benefits with advanced automation. Multi-pallet systems allow loading the next workpiece while machining continues, maximizing spindle utilization. These represent one of the common types of cnc machines for mass production.
- Dual pallet changers enable continuous production
- 40-80 tool magazines support diverse milling operations
- 4-axis cnc and 5th axis options expand machine capabilities
- High-pressure coolant systems (1000+ PSI)
Advantages:
HMCs dominate high-volume production environments where equipment utilization rates determine profitability. These machines work 20+ hours daily with minimal supervision, processing many different types of components efficiently.
- Maximum uptime: Automatic pallet changing achieves 95%+ spindle utilization
- Heavy-duty construction: Processes hard materials like titanium and Inconel
- Scalable production: Add pallets and fixtures to increase capacity
- Predictable costs: Consistent cycle times improve job costing accuracy
Applications:
Automotive suppliers invest heavily in HMCs to meet demanding production schedules. The machines deliver the volume and repeatability required for just-in-time manufacturing across various types of production runs.
- Engine blocks for passenger vehicles
- Aerospace bulkhead components
- Heavy equipment hydraulic manifolds
- Defense industry weapon system parts
6. Universal CNC Milling Machine
Key Features of Universal CNC Milling Machine:
Universal milling machines combine vertical and horizontal capabilities in one machine tool. The spindle head swivels, allowing operators to switch between configurations based on job requirements. This type of cnc offers flexibility that plain milling machine setups cannot match.
- Swiveling spindle head adjusts to multiple angles
- Manual and CNC control options provide flexibility
- Rotary table enables complex indexing operations
- Compact design suitable for smaller facilities
Advantages:
The versatility of universal mills appeals to job shops handling diverse work. Instead of investing in separate vertical and horizontal milling machines, shops consolidate capabilities in one unit. These machines use advanced control systems while maintaining manual operation options.
- Space savings: One machine replaces two separate units
- Lower capital investment: Reduced initial equipment costs
- Operational flexibility: Adapts to varied production requirements
- Skill development: Operators learn multiple machining approaches
Applications:
Tool and die shops appreciate the universal mill’s adaptability for custom work. Educational institutions also prefer these machines for comprehensive training programs covering different types of milling techniques.
- Prototype and one-off production
- Tool and die fabrication
- Maintenance and repair operations
- Small batch custom manufacturing
Comparison Table: Types of CNC Milling Machines
| Machine Type | Typical Spindle Speed | Price Range (2024) | Best For | Setup Complexity |
| Vertical CNC Mill | 3,000-8,000 RPM | $25,000-$100,000 | Small parts, prototypes | Low |
| Horizontal CNC Mill | 4,000-10,000 RPM | $150,000-$500,000 | Large parts, production | Medium |
| 5-Axis CNC | 8,000-20,000 RPM | $200,000-$800,000 | Complex geometries | High |
| VMC | 8,000-15,000 RPM | $80,000-$300,000 | Medium production | Medium |
| HMC | 6,000-12,000 RPM | $300,000-$1,000,000+ | High-volume production | Medium-High |
| Universal Mill | 2,000-6,000 RPM | $40,000-$150,000 | Diverse operations | Low-Medium |
Machine Selection Guide
| Production Volume | Part Complexity | Recommended Machine Type | Secondary Option |
| Low (1-100 parts) | Simple to Medium | Vertical CNC Mill | Universal Mill |
| Low (1-100 parts) | High Complexity | 5-Axis CNC | VMC |
| Medium (100-1,000 parts) | Simple to Medium | VMC | Horizontal CNC Mill |
| Medium (100-1,000 parts) | High Complexity | 5-Axis CNC | VMC with 4th Axis |
| High (1,000+ parts) | Any Complexity | HMC | Multiple VMCs |
Conclusion
Selecting the right types of cnc milling machines determines manufacturing success in today’s competitive environment. Vertical mills offer affordable entry points for small operations, while horizontal machining centers deliver the throughput needed for mass production. Five-axis machines unlock complex geometries previously impossible to manufacture efficiently with traditional turning machines or cnc lathe machine setups.
The 2024-2025 manufacturing landscape shows continued investment in automation and multi-axis cnc machines. Understanding each type of cnc machine and how these machines work helps manufacturers make informed equipment decisions that align with their production goals and budget constraints. Whether choosing between cnc plasma cutting machine equipment, cnc laser cutting systems, cnc grinding machine options, or traditional mill machines, selecting the right machine tool ensures optimal performance.
What is the main difference between vertical and horizontal CNC milling machines?
The spindle orientation differs—vertical machines have spindles perpendicular to the table, while horizontal machines have spindles parallel to the table. Horizontal mills excel at heavy cutting and chip removal, whereas vertical mills offer better visibility and easier setup for smaller parts during cnc drilling and face milling operations.
Why are 5-axis CNC machines more expensive than 3-axis machines?
Five-axis machines require additional rotary axes, more complex control systems, and higher-precision components. The advanced cnc technology, larger work envelope, and ability to machine complex geometries in single setups justify the premium pricing of $200,000-$800,000 versus $25,000-$100,000 for basic 3-axis machines. These multi-axis cnc machines offer capabilities that standard cnc router or cnc lathe configurations cannot provide.
Which type of milling machine is best for small businesses?
Vertical CNC mills or VMCs suit most small businesses due to lower costs ($25,000-$100,000), smaller footprints, and versatility. These machines use standard tooling and handle diverse jobs from prototyping to small-batch production without requiring large capital investments or extensive floor space compared to cnc plasma cutters or laser cutting machine installations.
How do I choose between a machining center and a standard CNC mill?
Consider production volume and automation needs when choosing the right cnc equipment. Standard CNC mills work for low-volume, manual-loading operations. Machining centers with automatic tool changers and pallet systems better serve medium to high-volume production requiring minimal operator intervention and faster cycle times across various types of manufacturing operations.
What industries use horizontal machining centers most frequently?
Automotive manufacturers lead HMC adoption for engine blocks, transmissions, and chassis components. Aerospace companies use them for structural parts and landing gear. Heavy equipment manufacturers rely on HMCs for hydraulic components and large castings requiring high-volume production with consistent quality across different types of cnc milling processes.
