Manufacturing has come a long way, and choosing the right mill for your shop can make or break production efficiency. The debate between 3-axis and 5-axis CNC machines keeps coming up in machine shops everywhere. What’s the difference between these two types of CNC equipment, and which one actually fits your needs?
Here’s the thing—both axis machines have their place. The global CNC machine market hit $95.29 billion in 2024 and experts predict it’ll reach $195.59 billion by 2032. That growth shows how manufacturers across aerospace, automotive, and electronics can’t get enough of precision machining capabilities. Whether you’re running a 3-axis cnc machine or investing in 5-axis milling, understanding what each type of machine brings to the table helps you make smarter equipment decisions.
3-Axis CNC Machining
A 3-axis cnc machine works along three linear axes—the X-axis moves left to right, the Y goes front to back, and the Z axes handle up and down motion. Think of it as your cutting tool dancing across three axes while the workpiece stays put. The Z-axis controls how deep your cuts go, which matters when you’re working with different materials.
What a 3-axis machine brings to your shop:
- Movement limited to three linear directions
- You’ll need to manually rotate the workpiece for different angles
- Perfect for parts that don’t need fancy geometry
- Initial investment runs $25,000 to $50,000
- Programming doesn’t require a PhD—basic CNC skills work fine
Traditional 3-axis cnc machines shine when you’re making flat surfaces, simple shapes, and components where complexity isn’t the goal. We’re talking panels, housings, brackets—the bread and butter of automotive and electronics manufacturing. These types of cnc equipment handle 2D and 2.5D parts without breaking a sweat.
The beauty of a 3-axis cnc milling setup? It’s accessible. Small to medium shops can jump into precision work without emptying the bank. Your operators need basic programming knowledge, cutting down training time. For production runs of straightforward parts, conventional 3-axis cnc machines deliver solid results at a price that makes sense.
5-Axis CNC Machining

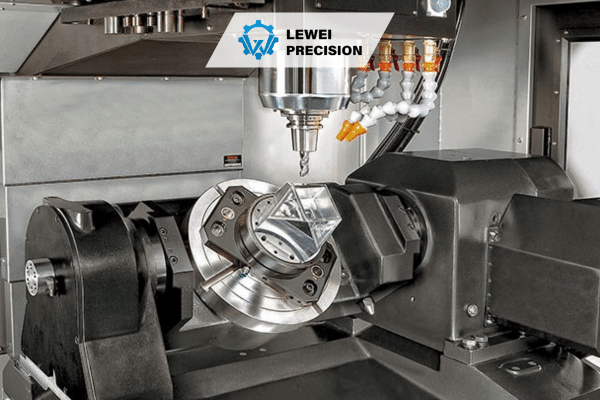

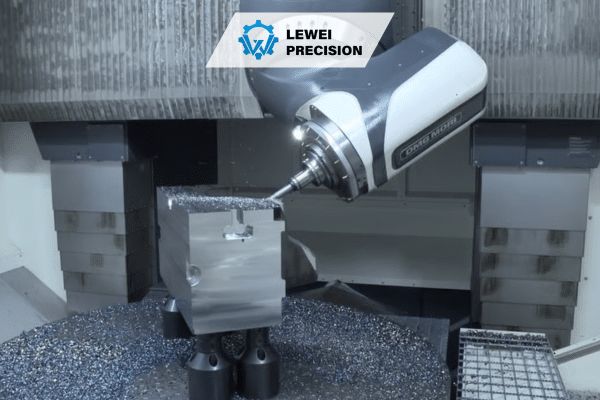

Now we’re getting interesting. A 5-axis cnc machine takes those three linear axes and adds two rotational axes—A and B rotation. This means your cutting tool can approach the workpiece from practically any angle without you having to stop and reposition everything. The A-axis rotates around the X-axis, while the B-axis rotation happens around the Y-axis. Using 5-axis machines, you’re working in five axes simultaneously.
There are two main types of 5-axis setups worth knowing. True 5-axis (also called continuous 5-axis) moves all five axes at once during cutting. Then there’s 3+2 axis machining (sometimes called 3+2 or indexed 5-axis), where you index the rotational axes to a fixed position, then cut using the three linear axes. Both beat traditional 3-axis milling for complex work.
What 5-axis milling brings to the game:
- All five axes working together or indexed positioning with 3+2 machining
- Machine highly complex 3d shapes in a single setup
- Your cutting tool can reach into deep cavities from multiple angles
- No more stopping to rotate—continuous machining saves serious time
- Tolerance levels that make perfection look easy
The 5-axis machine eliminates those tedious multiple setups. Parts get machined from all sides without repositioning, which speeds things up and keeps accuracy tight. This machining process proves essential when you’re making turbine blades, aerospace components, medical implants, and intricate molds that need smooth finishes. Using a 3-axis just won’t cut it for these applications.
Modern types of 5-axis cnc equipment come loaded with Industry 4.0 tech—IoT connectivity, real-time monitoring, predictive maintenance. You’re looking at $80,000 to over $500,000 depending on size and specs. Asia Pacific grabbed 36% of the market in 2024, with China, Japan, and India pushing hard on manufacturing automation.
The advantages of 5-axis technology really show when you need to produce parts faster than axis milling machines can handle. These 5-axis milling machines can remove material from sides of a part that regular 3-axis and 5-axis setups can’t touch efficiently. The difference between 3-axis and 5-axis becomes obvious when you’re dealing with parts that have compound angles or deep undercuts.
3-Axis vs. 5-Axis: The Real Differences
| Factor | 3-Axis CNC Machine | 5-Axis Machine |
| Axes Movement | Three axes (X, Y, Z) | Five axes (X, Y, Z plus A, B rotational axes) |
| Setup Process | Multiple repositioning needed | Single setup handles complex geometries |
| Speed | Gets the job done | 30-50% faster—parts faster production |
| Part Complexity | Simple to moderate shapes | Highly complex 3d shapes, undercuts, contours |
| Accuracy | ±0.005″ typical | ±0.0005″ achievable |
| Skill Level | Basic CNC programming | Advanced CAD/CAM skills required |
| Price Tag | $25,000-$50,000 | $80,000-$500,000+ |
| Maintenance | Lower costs | Higher—more moving parts mean more upkeep |
| Best For | Flat parts, simple components | Aerospace parts, medical devices, molds |
| Tool Access | Top-down approach only | 360-degree workpiece access |
Why a 3-axis machine might work for you:
- Budget-friendly entry point for startups and smaller shops
- Maintenance won’t drain your wallet
- New operators pick it up faster
- Handles high-volume simple parts efficiently
- Fewer mechanical components mean less can go wrong
Why 5-axis machining may be worth it:
- Surface finish quality that’ll impress customers
- Cycle times drop significantly on complex work
- Cutting tool life extends thanks to optimal angles
- One setup reduces human error and fixture costs
- You can machine tool paths that were impossible before
When using a 3-axis makes sense: Your shop focuses on simple geometry, cranking out high volumes on a tight budget? A 3-axis cnc fits perfectly. Electronic enclosures, basic molds, flat components—these don’t need five axes working overtime. Many manufacturers run 3 axis machining operations successfully because their parts don’t demand more complexity.
When 5-axis milling machines become necessary: Complex part requirements, aerospace components, medical devices, precision molds—these practically scream for 5-axis technology. Yes, the upfront cost stings, but here’s the math: 5-axis machining may cost more initially, yet it pays off when you factor in reduced setup time, better accuracy, and the ability to produce parts that would require specialized fixtures on conventional 3-axis cnc machines. The main difference between 3-axis and 5-axis shows up clearly in your bottom line when dealing with intricate geometries.
Picking the Right Machine Tool for Your Shop
The 3-axis vs 5-axis decision boils down to what you’re actually making. Part complexity sits at the top of the list—simple shapes run fine on 3-axis milling, while anything with compound curves needs those extra two rotational axes.
Production volume matters too. Cranking out thousands of simple brackets? A 3-axis machine keeps per-part costs down. Making smaller batches of intricate components? The 5-axis machine justifies its price tag through reduced setup time and tighter tolerance control.
Budget reality can’t be ignored. Smaller operations often start with 3 axis equipment and upgrade as business grows. The CNC milling machines market should hit $26.7 billion by 2033, with more shops adopting advanced axis machines across manufacturing sectors.
Questions to ask before buying:
- What kind of complex geometries do your parts have?
- How many production runs do you handle weekly?
- What’s realistic for equipment and training budget?
- Do your operators have experience with different types of machine tool systems?
- What tolerance levels do your customers demand?
- Where’s your business headed in three years?
Understanding the machining capabilities you actually need versus what looks impressive matters more than specs alone. Both 3-axis cnc and 5-axis milling serve specific purposes. The types of 5-axis cnc machines available now handle jobs that seemed impossible ten years ago, but that doesn’t mean every shop needs one.
The machining process you choose should match your parts, your team’s skills, and your wallet. A 3-axis machine running efficiently beats a 5-axis machine sitting idle because nobody knows how to program it properly. Start with what makes sense today while keeping tomorrow’s growth in mind.
What’s the main difference between 3-axis and 5-axis CNC machines?
The main difference comes down to movement. A 3-axis cnc machine moves in three linear directions (X, Y, Z axes), while a 5-axis machine adds two rotational axes. This means the cutting tool on 5 axes equipment can attack your workpiece from any angle without stopping to manually rotate anything.
Are 5-axis cnc machines actually worth the extra money?
If you’re making parts with complex geometries and tight tolerance requirements, absolutely. Using 5-axis machines cuts production time by 30-50% and kills the need for multiple setups. Aerospace, medical device, and precision mold shops see real ROI despite higher costs because these machines are typically used for work that demands it.
Can my 3-axis machine make the same parts as a 5-axis?
Some parts, sure—but you’ll need multiple setups and manual repositioning. Deep undercuts, compound angles, and highly complex 3d shapes really need those two additional axes. The difference shows up in quality and efficiency when geometry gets tricky.
Which industries benefit most from 4-axis and 5-axis machining?
Aerospace companies making turbine blades, medical device manufacturers, automotive performance parts, energy sector components, and precision mold makers get the biggest wins. These industries need the kind of machining capabilities where 5-axis technology shines—tight tolerances, complex shapes, and superior finishes that 3 axis equipment can’t match efficiently.
How hard is it to program a 5-axis milling machine?
Honestly? It’s a step up from 3-axis milling. You need solid CAD/CAM skills and understanding of how all those axes work together. Modern software helps a lot, but your operators need proper training beyond basic programming. The learning curve exists, but once your team gets it, the types of 5-axis cnc work you can tackle opens up significantly.
